Cold Hot Pressing Machine High Speed Industrial Centrifugal Decanter for Avocado Oil
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | HENAN SOLID |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $98,000.00/sets >=1 sets |
| Packaging Details: | All core equipment and spare parts are packed by exported standard wooden cases. |
| Supply Ability: | 30 Set/Sets per Year |
|
Detail Information |
|||
| Applicable Industries: | Food & Beverage Shops | Max Capacity: | 5000 |
|---|---|---|---|
| Showroom Location: | Mexico, Kenya | Condition: | New |
| Use: | Avocado Oil | Type: | Cold & Hot Pressing Machine |
| Automatic Grade: | Automatic | Production Capacity: | 99% |
| Voltage: | 220V380V415V440V | Dimension(L*W*H): | 4600X1250X1400MM |
| Weight: | 6000 KG | Warranty: | 1 Year |
| Key Selling Points: | Automatic | Marketing Type: | New Product 2020 |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Core Components: | PLC, Bearing |
| Oil Type: | Avocado Oil | Product Name: | Avocado Oil Decanter Centrifuge |
| Model: | AVOT-52 | Capacity: | 5-6T/h |
| Separation Method: | 2-phase | Rotation Speed: | Max.4200rpm |
| Speed Control: | Frequency Inverter | Differential Speed: | 2rpm-31rpm |
| Main Motor+Vice Motor: | 70KW (ABB/SIEMENS) | Power Supply: | 220V/380V/415V/440V |
| Dimensions&Weight: | 4600X1250X1400MM/6000KGS | Port: | QINGDAO,SHANGHAI |
Product Description

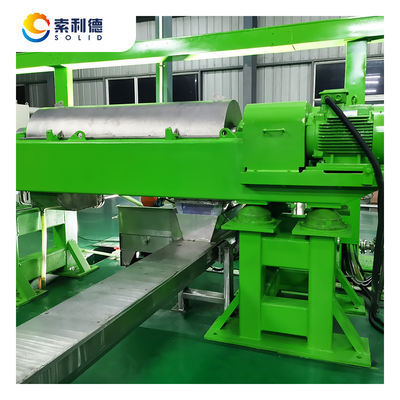

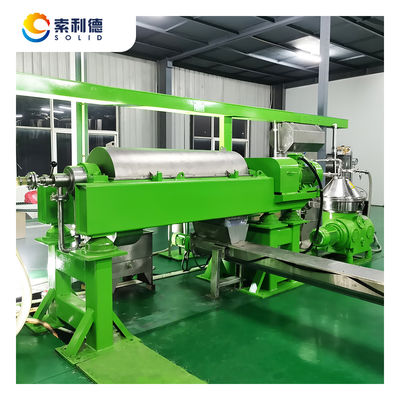

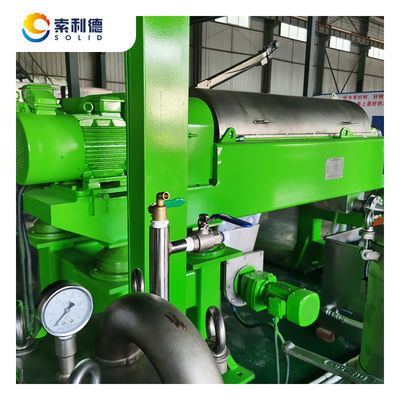

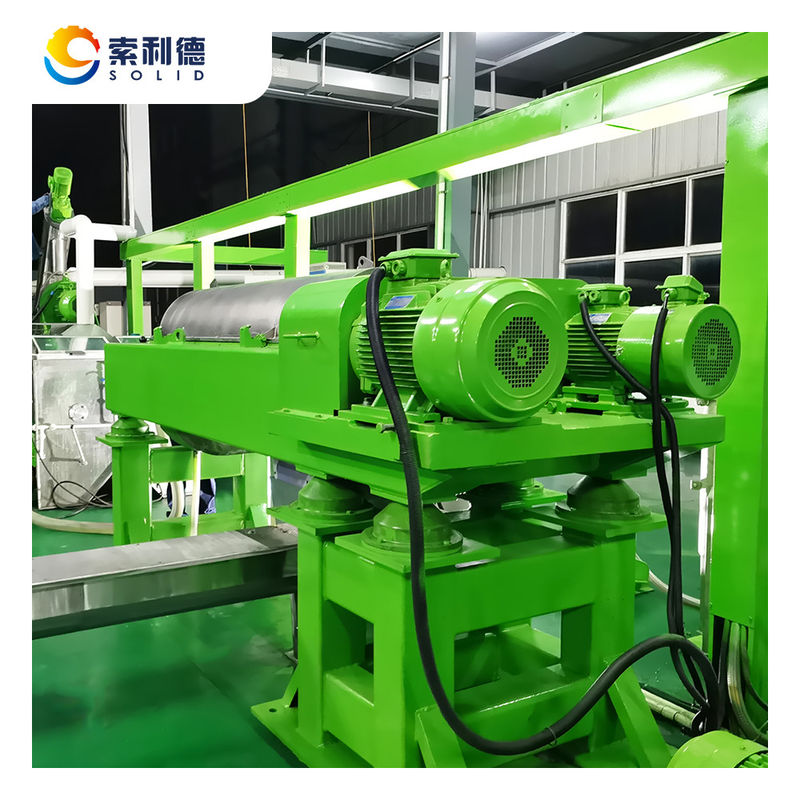

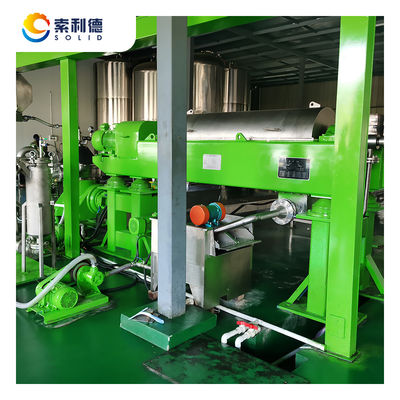

AVOT Series Decanter Centrifuge
(Special Design for Avocado Oil Production)
AVOT series decanter centrifuge is designed specially for avocado oil extraction from the ready paste by 2-phase or 3-phase separation.Together with our polishing separator,customer can produce the extra virgin avocado oil.
It can run continuously 24 hours a day. This centrifuge is mainly composed of driving device,differential,screw,drum,frame, machine base and control system.
AVOT-2 Two Phase Decanter Centrifuge
AVOT-2 decanter centrifuge is designed for avocado oil extraction,mainly for 300-500kg/h avocado extraction line
AVOT-4 Three Phase Decanter Centrifuge
AVOT-4 decanter centrifuge is designed for avocado oil extraction,mainly for 3000-4000kg/h avocado extraction line
Specification
MODEL | AVOT-2 | AVOT-3 | AVOT-4 | AVOT-5 | AVOT-6 | |||
CAPACITY | 500KG/H | 2000KG/H | 4000KG/H | 6000kg/h | 10000kg/h | |||
SEPARATION | 2-PHASE | 2/3-PHASE | 2/3-PHASE | 2/3-PHASE | 2/3-PHASE | |||
SPEED | 4200RPM | 3600RPM | 3300RPM | 2800RPM | 3000RPM | |||
MATERIAL | SUS304 | 304/316/2205/2507 (DIN 1.4301/1.4401/1.4462/1.4410) | ||||||
DIMENSION | 2700*800*900MM | 3500*1000*1250MM | 4200*1200*1300MM | 4600*1500*1600MM | 4800*1800*1900MM | |||
Packing & Delivery
Want to Know more details about this product
