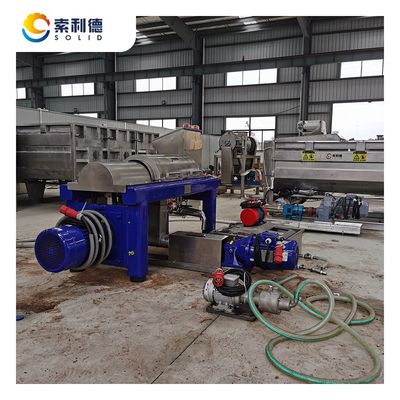

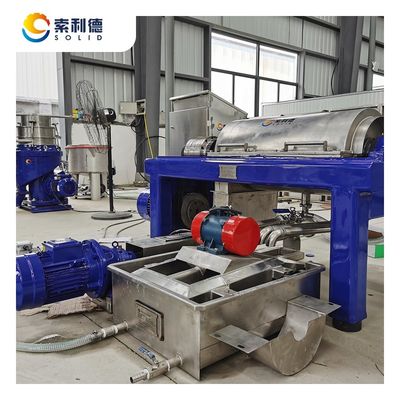

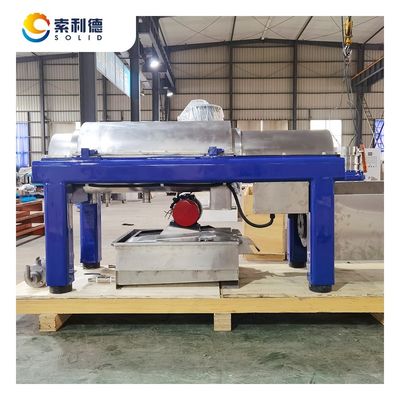

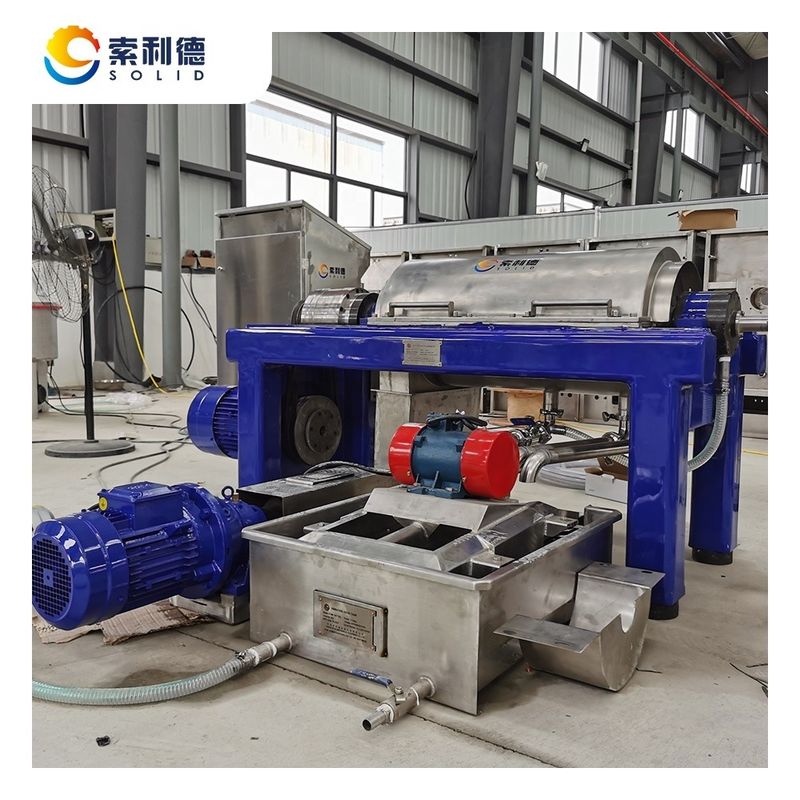

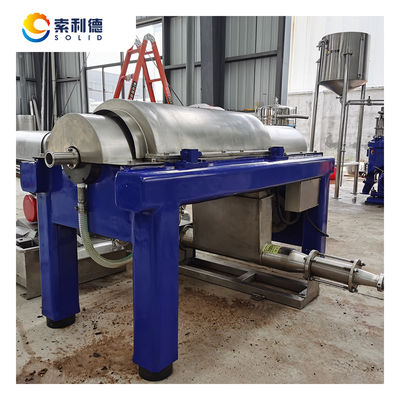

2-Phase AVOT-2 500KG/H Extra Virgin Avocado Oil Decanter Centrifuge for Oil Extraction
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | HENAN SOLID |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $28,000.00/sets >=1 sets |
| Packaging Details: | All core equipment and spare parts are packed by exported standard wooden cases. |
| Supply Ability: | 30 Set/Sets per Year |
|
Detail Information |
|||
| Condition: | New | Applicable Industries: | Avocado Oil Production, Olive Oil Production |
|---|---|---|---|
| Showroom Location: | Mexico, Kenya | Video Outgoing-inspection: | Provided |
| Machinery Test Report: | Provided | Marketing Type: | New Product 2021 |
| Warranty Of Core Components: | 2 Years | Core Components: | Gearbox, Gear, Bearing, PLC, Differential |
| Material: | SUS304/SS316L/2205 | Weight: | 1200KGS |
| Size: | 2700*8000*900mm | Power: | 11+4.0(Frequency Inverter) |
| Warranty: | 2 Years | Productivity: | 500kg/h |
| Weight (KG): | 1200 Kg | Product Name: | Avocado Oil Decanter Centrifuge |
| Model: | AVOT-2 | Capacity: | 500kg/h |
| Separation Method: | 2-phase | Rotation Speed: | Max.4200rpm |
| Speed Control: | Frequency Inverter | Differential Speed: | 2rpm-31rpm |
| Main Motor+Vice Motor: | 11kw+4.0kw (ABB/SIEMENS) | Power Supply: | 220V/380V/415V/440V |
| Dimensions&Weight: | 2700*800*900mm/1200kgs | Port: | QINGDAO,SHANGHAI |
Product Description
AVOT Series Decanter Centrifuge
(Special Design for Avocado Oil Production)

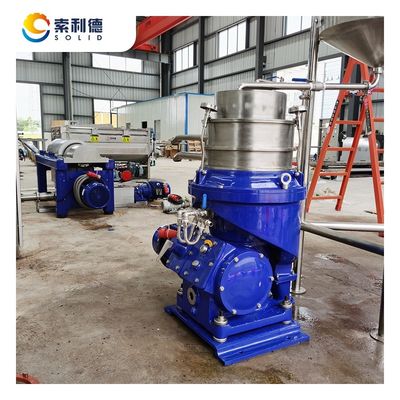

AVOT series decanter centrifuge is designed specially for avocado oil extraction from the ready paste by 2-phase or 3-phase separation.Together with our polishing separator,customer can produce the extra virgin avocado oil.
It can run continuously 24 hours a day. This centrifuge is mainly composed of driving device,differential,screw,drum,frame, machine base and control system.
AVOT-2 Two Phase Decanter Centrifuge
AVOT-2 decanter centrifuge is designed for avocado oil extraction,mainly for 300-500kg/h avocado extraction line
AVOT-4 Three Phase Decanter Centrifuge
AVOT-4 decanter centrifuge is designed for avocado oil extraction,mainly for 3000-4000kg/h avocado extraction line
Specification
MODEL | AVOT-2 | AVOT-3 | AVOT-4 | AVOT-5 | AVOT-6 | |||
CAPACITY | 500KG/H | 2000KG/H | 4000KG/H | 6000kg/h | 10000kg/h | |||
SEPARATION | 2-PHASE | 2/3-PHASE | 2/3-PHASE | 2/3-PHASE | 2/3-PHASE | |||
SPEED | 4200RPM | 3600RPM | 3300RPM | 2800RPM | 3000RPM | |||
MATERIAL | SUS304 | 304/316/2205/2507 (DIN 1.4301/1.4401/1.4462/1.4410) | ||||||
DIMENSION | 2700*800*900MM | 3500*1000*1250MM | 4200*1200*1300MM | 4600*1500*1600MM | 4800*1800*1900MM | |||
