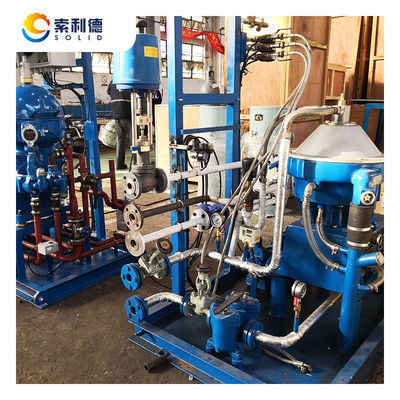

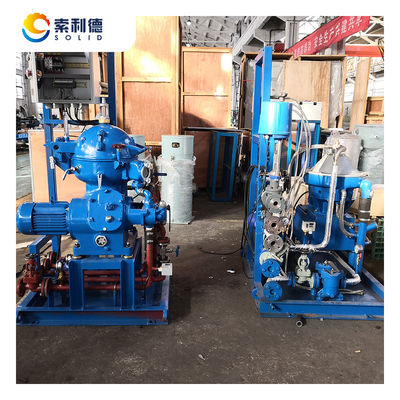

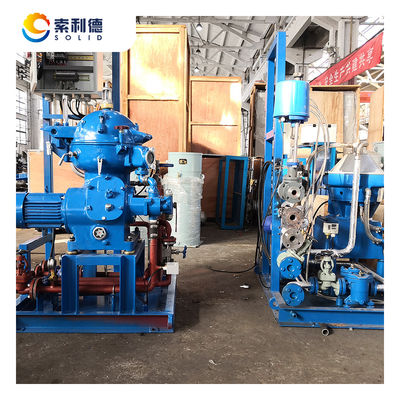

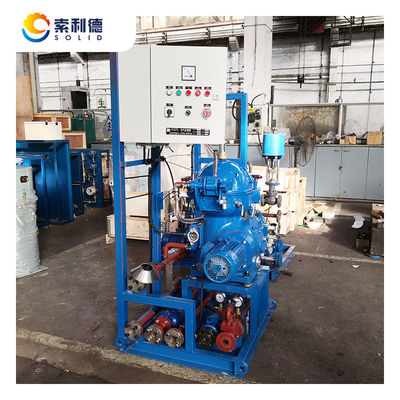

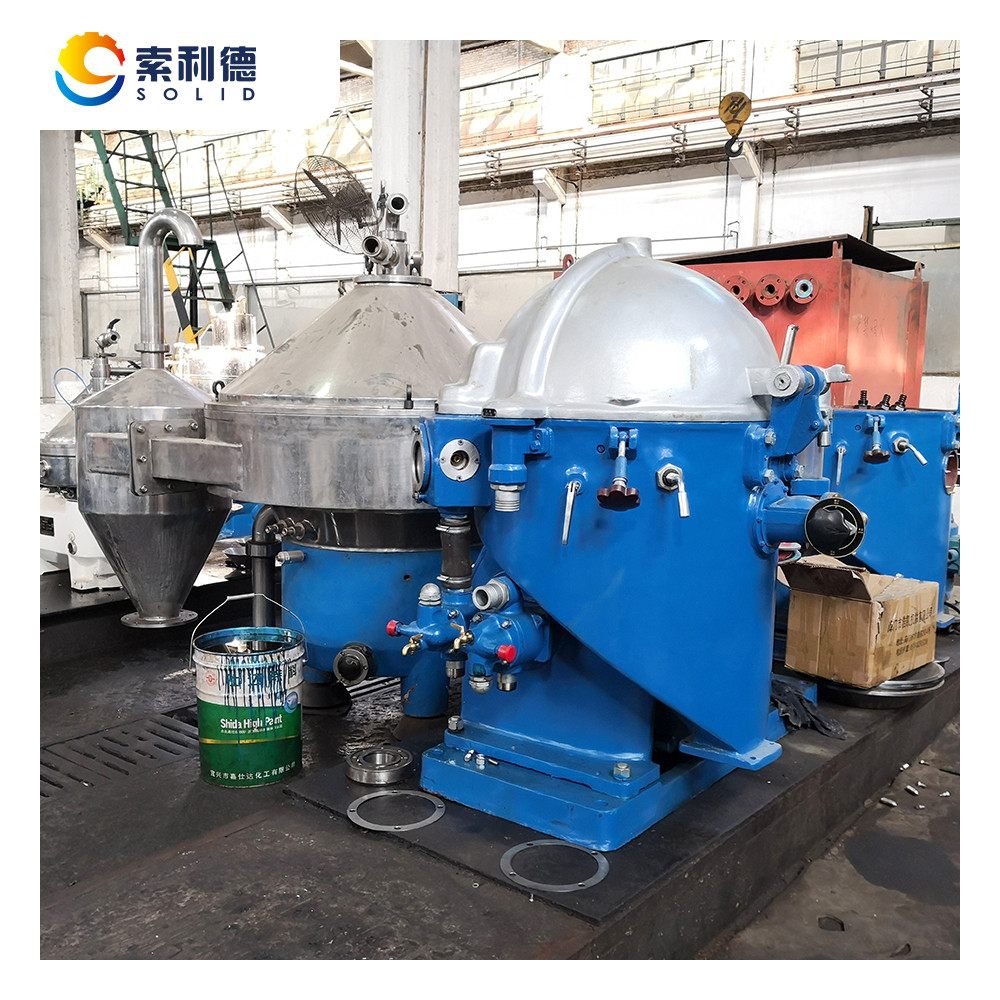

4.0KW KYDB203SD-21 Disc Centrifuge Separator for Lube Fuel and Diesel Oil Clarifying
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | HENAN SOLID |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $25,000.00/sets >=1 sets |
| Packaging Details: | All core equipment and spare parts will be film wrapped and packed by exported standard wooden cases. |
| Supply Ability: | 200 Set/Sets per Year |
|
Detail Information |
|||
| Condition: | New | Applicable Industries: | Marine Oil |
|---|---|---|---|
| Showroom Location: | Peru, Mexico, Kenya | Video Outgoing-inspection: | Provided |
| Machinery Test Report: | Provided | Marketing Type: | New Product 2020 |
| Warranty Of Core Components: | 2 Years | Core Components: | Gearbox, Gear, Bearing, PLC, Differential |
| Material: | SUS304/SS316L/2205 | Weight: | 560KGS |
| Size: | 1090X1100X1200MM | Power: | 4.0KW, 4.0kw (ABB/SIEMENS) |
| Warranty: | 2 Years | Productivity: | 30500L/Hour |
| Weight (KG): | 560 Kg | Product Name: | Marine Oil Disc Separator |
| Brand: | HENAN SOLID | Model: | KYDB203SD-21 |
| Capacity: | 2000L/H | Rotation Speed: | 8400 |
| Separation Factor: | 10000 | Power Supply: | 380V/50HZ/3-PH |
| Start Type: | Frequency Startup | Dimensions&Weight: | 1090X1100X1200MM /560kgs |
| Port: | QINGDAO,SHANGHAI | ||
Product Description
KYDB Marine Oil Separator
(Special Design for Marine Oil Separation Purification
KYDB Series marine separator is mainly used for cleaning up the moisture and mechanical impurity in the fuel ( Light diesel oil, heavy diesel oil, fuel oil) and lubricating oil of ships and diesel engine, which is good to reduce the abrasion and prolong its service-life.
The design, manufacture and inspect are accord with GB/T5745-2002 << Marine Disk Separator>>. Stable operation, the vibration is much lower than the national standard value. All materials are made of stainless steel, so effectively reduce the corrosion of separation materials.
The design, manufacture and inspect are accord with GB/T5745-2002 << Marine Disk Separator>>. Stable operation, the vibration is much lower than the national standard value. All materials are made of stainless steel, so effectively reduce the corrosion of separation materials.
Configuration description for SEPARATION UNIT
* Applicable material:viscosity 380cst-700cst @50℃,density (1010kg/m3) heavy fuel oil;also lubricating oil,diesel etc * Adopt none gravity disc operation method,the complete module meets the CSSC standards. * Moisture sensor,to ensure the final oil quality. * Complete hydraulic drum structure,slag discharge thoroughly. * High rotation speed to ensure better separation effect. * Low energy consumption and light weight * Reliable transmission structure, simpler mechanical structure * PLC program control,Chinese and English operation interface,automatic control of the slag discharge process of the separator, manual operation, and panel setting parameters. With high and low temperature, high and low pressure, motor overload, oil pump overload alarm.Automatically switch oil circuit after alarm, and provide external passive alarm contact
KYDB205SD-21 Vertical Separator
KYDB Series marine separator is mainly used for cleaning up the moisture and mechanical impurity in the fuel ( Light diesel oil,heavy diesel oil, fuel oil) and lubricating oil of ships and diesel engine, which is good to reduce the abrasion and prolong its service-life.
KYDB207SD-21 Vertical Separator
KYDB Series marine separator is mainly used for cleaning up the moisture and mechanical impurity in the fuel ( Light diesel oil,heavy diesel oil, fuel oil) and lubricating oil of ships and diesel engine, which is good to reduce the abrasion and prolong its service-life.
Specification
MODEL | KYDB203SD-21 | KYDB205SD-21 | KYDB207SD-21 | |||
Brand | HENAN SOLID | HENAN SOLID | HENAN SOLID | |||
Capacity | 2000L/H | 3500L/H | 6000L/H | |||
Design Speed | 8400 | 5790 | 7800 | |||
Separation Factor | 11200 | 10000 | 10000 | |||
Material | 304/316/2205/2507 (DIN 1.4301/1.4401/1.4462/1.4410) | SUS304 | ||||
Power | 4.0KW | 7.5KW | 15KW | |||
Start Mode | Frequency Startup | Frequency Startup | Frequency Startup | |||
Discharge Model | Self-cleaning | Self-cleaning | Self-cleaning | |||
Dimension L*W*H | 1090MMX1100MMX1200MM | 1090MMX1100MMX1305MM | 1200MMX1100MMX1350MM | |||
Weight | 560KGS | 690KGS | 826KGS | |||
Packing & Delivery
Process Drawing
