Disc Centrifuge Machine for Latex Olive Vegetable Coconut Palm Oil Water Separation

Disc Centrifuge Machine for Latex Olive Vegetable Coconut Palm Oil Water Separation

Product Details:

Place of Origin: Henan, China
Brand Name: HENAN SOLID

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: $28,000.00/sets >=1 sets
Packaging Details: All core equipment and spare parts will be film wrapped and packed by exported standard wooden cases.
Supply Ability: 200 Set/Sets per Year
Get Best Price Contact Now

Detail Information
Condition: New Applicable Industries: Farms, Palm Oil, Latex
Showroom Location: Mexico Video Outgoing-inspection: Provided
Machinery Test Report: Provided Marketing Type: New Product 2020
Warranty Of Core Components: 2 Years Core Components: Gearbox, Gear, Bearing, PLC, Differential
Material: SUS304/SS316L/2205 Weight: 1040KGS
Size: 1280X850X1670MM Power: 11KW, 11kw (ABB/SIEMENS)
Warranty: 2 Years Productivity: 500L/Hour
Weight (KG): 1040 Kg Product Name: Rubber Latex Disc Separator
Brand: HENAN SOLID Model: JRDR-400
Capacity: 400-600L/H Rotation Speed: 7075
Separation Factor: 11062 Power Supply: 220V/380V/415V/440V
Start Type: Frequency Startup Dimensions&Weight: 1280X850X1670MM/1040KGS
Port: QINGDAO,SHANGHAI

Product Description

JRDR Series Latex Vertical Disc Separator

(Special Design for Concentrated Rubber Latex Production)


JRDR-400 Latex disc separator is used for concentrated latex production from nature latex collected from rubber tree.

The natural latex is from rubber tree, milk white , solid content is 30%~40%, and the average diameter of solid is 1.06um. The fresh natural latex contain latex 27%~41.3%(m/m) ,water 44%~70% ,protein 0.2%~4.5% ,natural resin 2%~5% and ash 0.4% .To facilitate transportation and processing, natural rubber latex should be concentrated to the solid content of 60% by adopting the method of centrifugal or evaporation. so it also known as concentrated latex.
Latex Concentration Centrifuge model PDSLA-400/600 is suitable for concentrating and purifying of the natural latex.It can separate the latex into the cream and skim,as well as eliminate the solid impurities at the same time.This model of separator is provided with the following advantages:inverter start-up,el.magnetic brake,short stopping-and long effective separating time,large treatment capacity,good separating efficiency.It is really a excellent equipment for the latex production. Latex Concentration Centrifuge model PDSLA-400/600 is suitable for concentrating and purifying of the natural latex.It can separate the latex into the cream and skim,as well as eliminate the solid impurities st the same time. It is really a excellent equipment for the latex production.

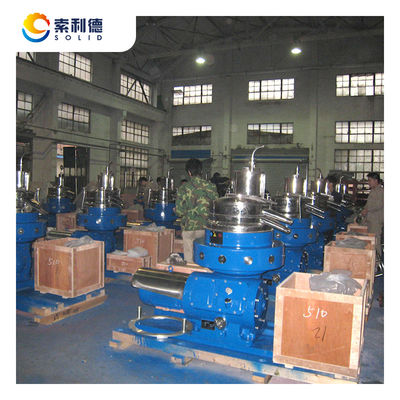

Disc Centrifuge Machine for Latex Olive Vegetable Coconut Palm Oil Water Separation 0

JRDR Series Latex Vertical Separator

JRDR-400 Latex disc separator is used for the concentrated latex production from the latex collected from rubber tree.

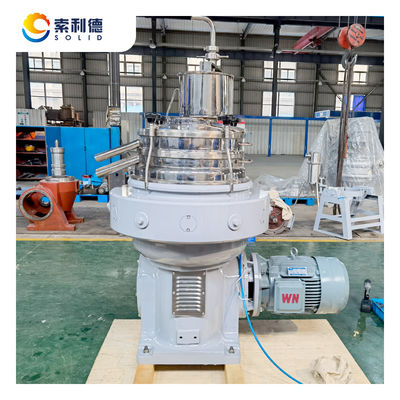

Disc Centrifuge Machine for Latex Olive Vegetable Coconut Palm Oil Water Separation 1

JRDR-400 Latex Vertical Separator

JRDR-400 Latex disc separator is used for the concentrated latex production from the latex collected from rubber tree.
Specification
MODEL
JRDR-400
AVOS-2000
JDRD-400A
Brand
HENAN SOLID
HENAN SOLID
HENAN SOLID
Capacity
400L/H-600L/H
2000L/H
400L/H-600L/H
Design Speed
7075
6250
7075
Material
SUS304

SUS304
Power
11KW
5.5KW
11KW
Start Mode
Frequency Startup
Direct Startup
Frequency Startup
Discharge Model
Self-cleaning
Manual
Self-cleaning
Dimension L*W*H
1280MMX850MMX1670MM
1090MMX1100MMX1305MM
1280MMX850MMX1670MM
Weight
1040KGS
690KGS
1040KGS

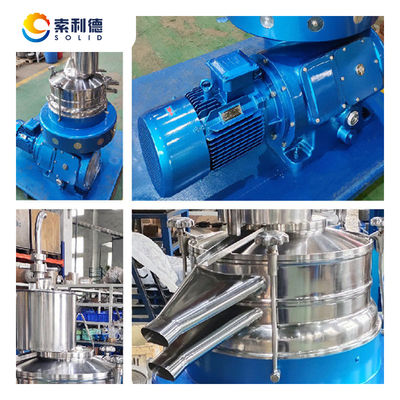

Disc Centrifuge Machine for Latex Olive Vegetable Coconut Palm Oil Water Separation 2
Packing & Delivery

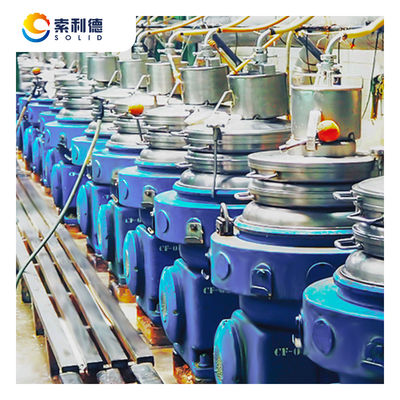

Disc Centrifuge Machine for Latex Olive Vegetable Coconut Palm Oil Water Separation 3

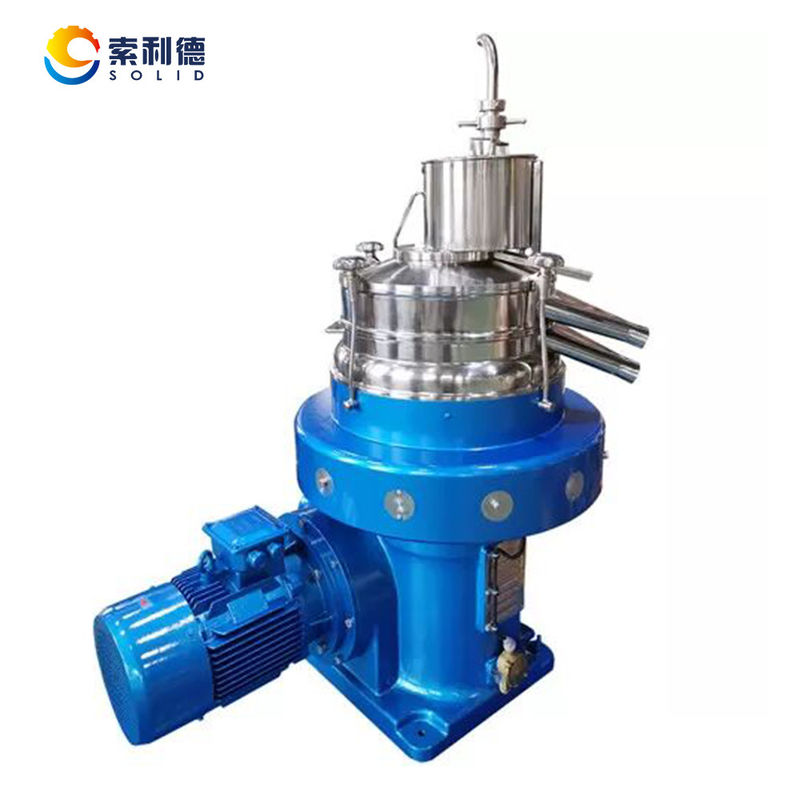

Disc Centrifuge Machine for Latex Olive Vegetable Coconut Palm Oil Water Separation 4

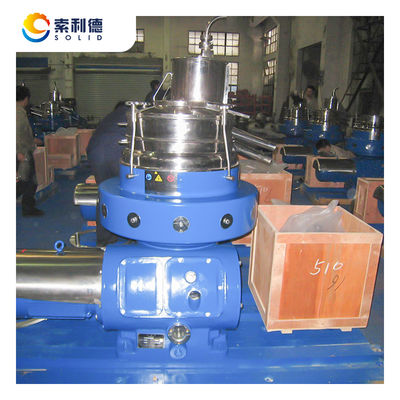

Disc Centrifuge Machine for Latex Olive Vegetable Coconut Palm Oil Water Separation 5
Disc Centrifuge Machine for Latex Olive Vegetable Coconut Palm Oil Water Separation 6
Disc Centrifuge Machine for Latex Olive Vegetable Coconut Palm Oil Water Separation 7
