Easy to Operate AVOS-4000 Vertical Disc Stack Separator for Avocado Oil Purification
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | HENAN SOLID |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $30,000.00 - $35,000.00/sets |
| Packaging Details: | All core equipment and spare parts will be film wrapped and packed by exported standard wooden cases. |
| Supply Ability: | 200 Set/Sets per Year |
|
Detail Information |
|||
| Type: | Centrifuge | Product Type: | Avocado Oil |
|---|---|---|---|
| Condition: | New | Video Outgoing-inspection: | Provided |
| Machinery Test Report: | Provided | Marketing Type: | Avocado Oil |
| Warranty Of Core Components: | 2 Years | Core Components: | Bearing, Gear |
| Voltage: | 220V/380V/415V/440V | Power: | 11KW, 11kw (ABB/SIEMENS) |
| Weight: | 826 | Dimension(L*W*H): | 1200X1100X1300MM |
| Warranty: | 2 Years | Key Selling Points: | Easy To Operate |
| Applicable Industries: | Food & Beverage Factory, Farms | Showroom Location: | Italy, Peru, Mexico |
| Product Name: | Olive Oil Disc Separator | Brand: | HENAN SOLID |
| Model: | AVOS-4000 | Capacity: | 4000L/H |
| Rotation Speed: | 7800 | Power Supply: | 380V/50HZ/3-PH |
| Start Type: | Direct Startup | Discharge Type: | Self Cleaning |
| Dimensions&Weight: | 1200X1100X1300MM | Port: | QINGDAO,SHANGHAI |
Product Description
AVOS Series Vertical Separator
(Special Design for Avocado Oil Production)
AVOS series vertical separator is designed specially for olive oil and avocado oil (which comes from decanter centrifuge) purification. This separator can be also used to recover the oil from the vegetable water generated in the avocado oil mill.
AVOS-1000 Vertical Separator
AVOS-1000 Vertical separator is designed for olive oil and avocado oil purification,mainly used for 500kg/h and 1000kg/h avocado oil extraction line
AVOS-2000 Vertical Separator
AVOS-2000 Vertical separator is designed for olive oil and avocado oil purification,mainly used for capacity over 2000kg/h avocado oil extraction line
Specification
MODEL | AVOS-1000 | AVOS-2000 | AVOS-4000 | |||
Brand | HENAN SOLID | HENAN SOLID | HENAN SOLID | |||
Capacity | 1000L/H | 2000L/H | 4000L/H | |||
Drum ID | 240MM | 315MM | 385MM | |||
Design Speed | 7200 | 6250 | 7800 | |||
Material | 304/316/2205/2507 (DIN 1.4301/1.4401/1.4462/1.4410) | SUS304 | ||||
Power | 4.0KW | 5.5KW | 11KW | |||
Start Mode | Direct Startup | Direct Startup | Frequency Startup | |||
Discharge Model | Manual | Manual | Self-cleaning | |||
Dimension L*W*H | 900MMX700MMX1100MM | 1090MMX1100MMX1305MM | 1200MMX1100MMX1300MM | |||
Weight | 560KGS | 690KGS | 826KGS | |||
Packing & Delivery

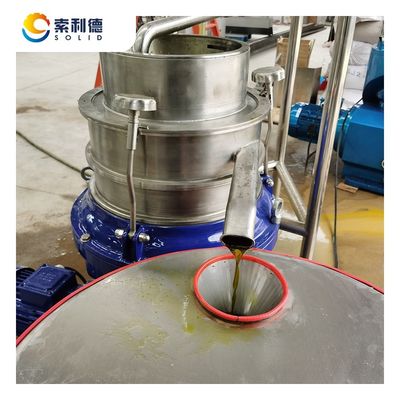

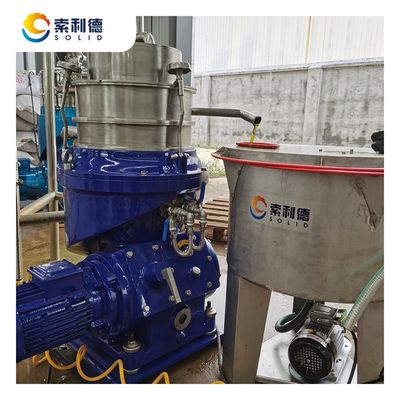

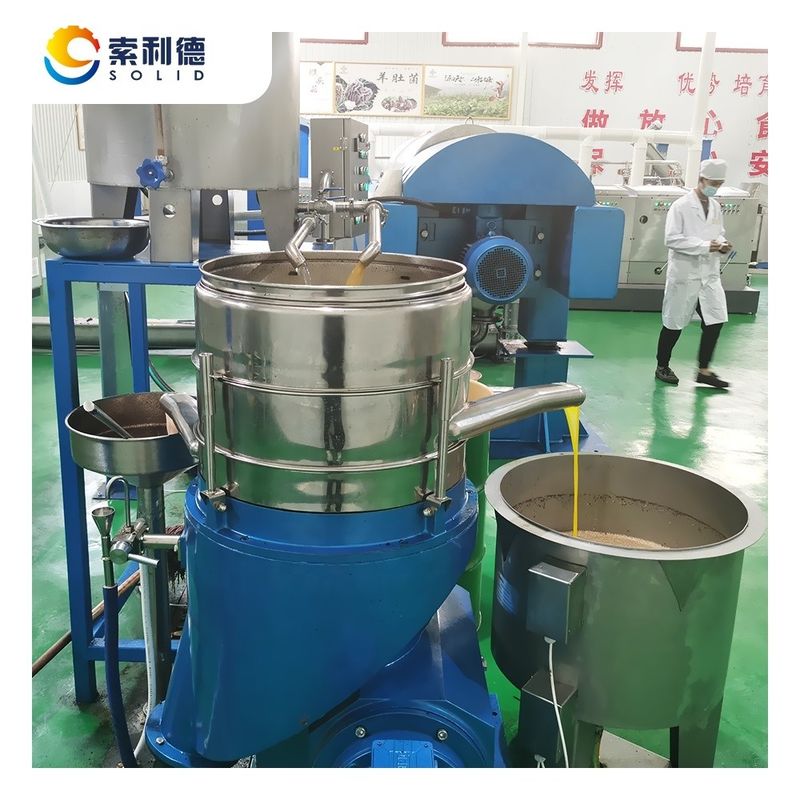

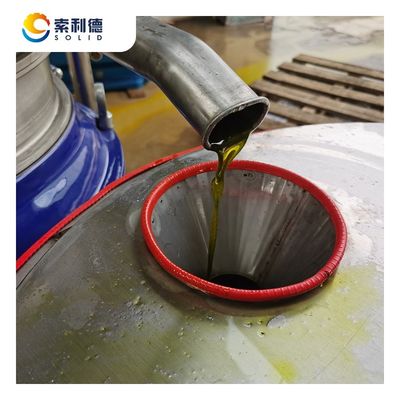

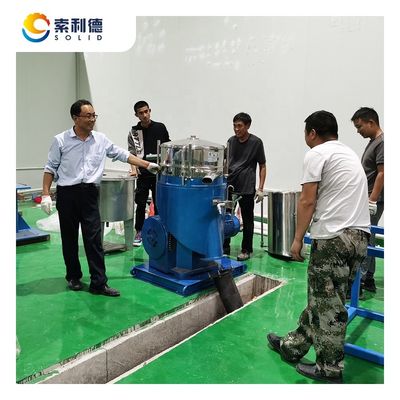

Customer Photos
Process Drawing
Process Description
Want to Know more details about this product
