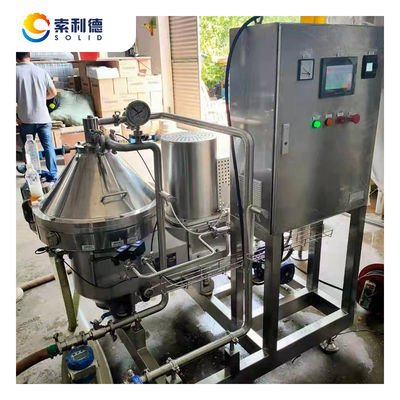

JNPJ-500 15kw Craft Beer Yeast Separator Centrifuge for Wort Clarification Approved
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | HENAN SOLID |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $50,000.00/sets >=1 sets |
| Packaging Details: | All core equipment and spare parts will be film wrapped and packed by exported standard wooden cases. |
| Supply Ability: | 200 Set/Sets per Year |
|
Detail Information |
|||
| Condition: | New | Applicable Industries: | Craft Beer |
|---|---|---|---|
| Showroom Location: | Mexico, Kenya | Video Outgoing-inspection: | Provided |
| Machinery Test Report: | Provided | Marketing Type: | New Product 2020 |
| Warranty Of Core Components: | 2 Years | Core Components: | Gearbox, Gear, Bearing, PLC, Differential |
| Material: | SUS304/SS316L/2205 | Weight: | 1050/1200KGS |
| Size: | 1280X1040X1350MM | Power: | 15KW, 15kw (ABB/SIEMENS) |
| Warranty: | 2 Years | Productivity: | 2000L/Hour |
| Weight (KG): | 800 Kg | Product Name: | Craft Beer Disc Separator |
| Brand: | HENAN SOLID | Model: | JNPJ-500 |
| Capacity: | 5000l/h | Rotation Speed: | 6910 |
| Power Supply: | 220V/380V/415V/440V | Start Type: | Frequency Startup |
| Discharge Type: | Slide Valve | Dimensions&Weight: | 1280X1040X1350MM /1050KGS |
| After Warranty Service: | Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service | Local Service Location: | Turkey, Russia, Spain |
| After-sales Service Provided: | Video Technical Support, Field Installation, Commissioning And Training, Field Maintenance And Repair Service, Free Spare Parts, Online Support | Port: | QINGDAO,SHANGHAI |
Product Description

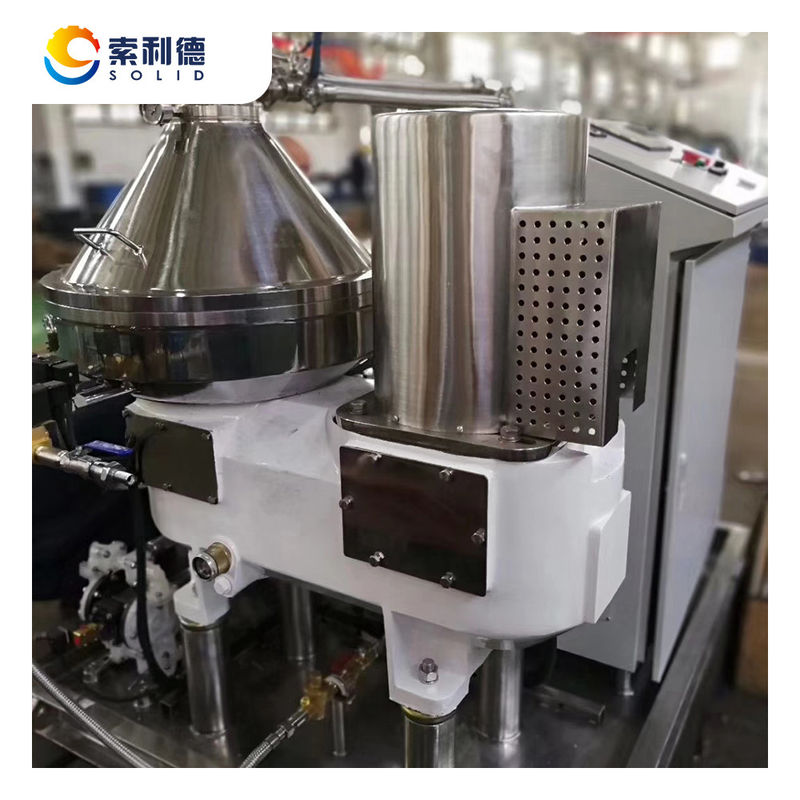

JNPJ Series Craft Beer Disc Separator
(Special Design for Craft Beer Production)
CRAFT BEER MATERIAL SEPARATION PARAMETERS REQUIREMENTS: 1.The yeast content is about 30 million and the remaining yeast content is required 2 million after centrifugal separation. 2.The increased dissolved oxygen should be within 5 after centrifugal separation. 3.The customer prepare the carbon dioxide and oxygen-free water on site. CRAFT BEER SEPARATOR MAIN FUNCTIONS: 1.Centrifugal separation is carried out at the best time of aroma and taste to remove most of the yeast, hop residue and coagulum, thereby shortening the brewing cycle, improving the taste, and keeping the quality at the best level for a long time. 2.Control the dissolved oxygen content, the lower the oxygen increase, the better. 3.The IPA craft beer after centrifugal separation, no matter the taste or turbidity, will not change for at least half a year.
JNPJ-300 Craft Beer Vertical Separator
Craft Beer from JNPJ-300 Vertical Separator
Specification
MODEL | JNPJ-300 | JNPJ-500 | JNPJ-1000 | |||
Brand | HENAN SOLID | HENAN SOLID | HENAN SOLID | |||
Capacity | 2000L/H | 5000L/H | 10000L/H | |||
Design Speed | 8400 | 6910 | 5790 | |||
Separation Factor | 11200 | 10800 | 10000 | |||
Material | 304/316/2205/2507 (DIN 1.4301/1.4401/1.4462/1.4410) | SUS304 | ||||
Power | 7.5KW | 15KW | 22KW | |||
Start Mode | Frequency Startup | Frequency Startup | Frequency Startup | |||
Discharge Model | Self-cleaning | Self-cleaning | Self-cleaning | |||
Dimension L*W*H | 1150MMX900MMX1130MM | 1280MMX1040MMX1350MM | 1480MMX1290MMX1590MM | |||
N.W/G.W | 615KGS/800KGS | 1050KGS/1200KGS | 1580KGS/1700KGS | |||

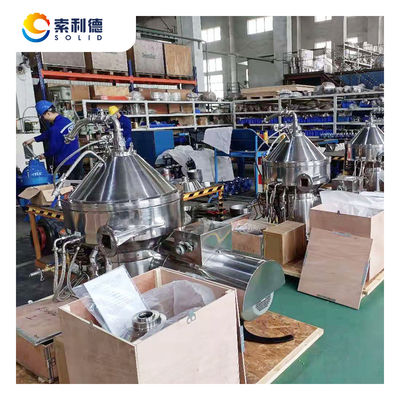

Packing & Delivery

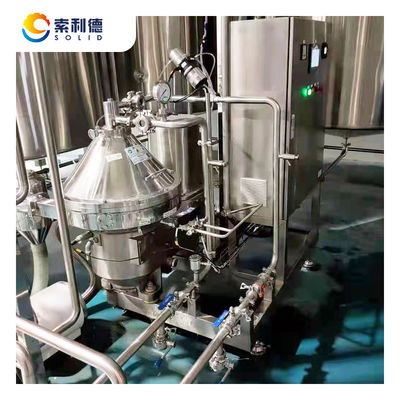

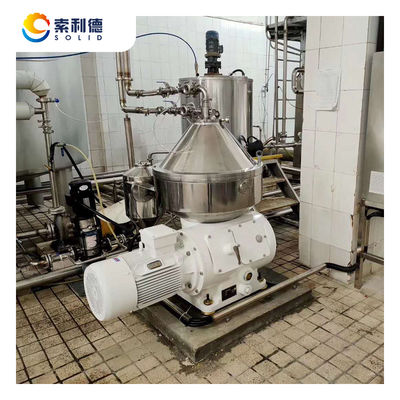

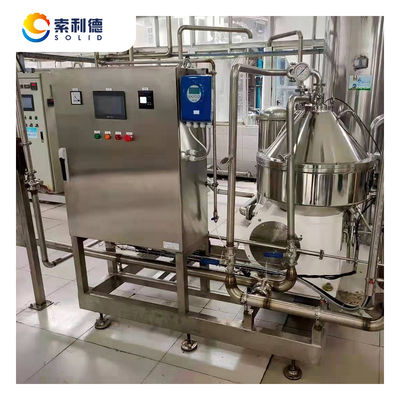

Customer Photos
