Voltage 220V/415V/440V CPAO-500 500KG/H Cold Pressed Avocado Oil Extraction Plant
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | HENAN SOLID |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $140,000.00/sets 1-1 sets |
| Packaging Details: | All core equipment and spare parts are packed by exported standard wooden cases.<br>CPAO-500 line can fit into 2*40ft container |
| Supply Ability: | 30 Set/Sets per Year |
|
Detail Information |
|||
| Applicable Industries: | Manufacturing Plant, Food & Beverage Factory, Farms | Max Capacity: | 500 Kg/h |
|---|---|---|---|
| Showroom Location: | Mexico, Kenya | Condition: | New |
| Use: | Avocado Oil | Type: | Centrifuge Extraction Machine |
| Automatic Grade: | Automatic | Production Capacity: | 500KG/H |
| Voltage: | 220V/415V/440V | Dimension(L*W*H): | 13*6*2.5M |
| Weight: | 3500 KG, 3500KGS | Warranty: | 1 Year |
| Key Selling Points: | Long Service Life | Marketing Type: | New Product 2020 |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 2 Years | Core Components: | Motor, Pump, PLC, Bearing, Engine |
| Oil Type: | AVOCADO OIL | Product Name: | Avocado Oil Extraction Line |
| Extraction Method: | Centrifuge Extraction | Core Equipment: | Decanter And Separator |
| Equipment Material: | SUS304 | Model: | CPAO-500 |
| Capacity: | 300-500KG/H | Installation Power: | 80kw |
| Oil Yield: | 10% | Cover Space: | 13*6*2.5M |
| Port: | QINGDAO,SHANGHAI | ||
Product Description
Product Description

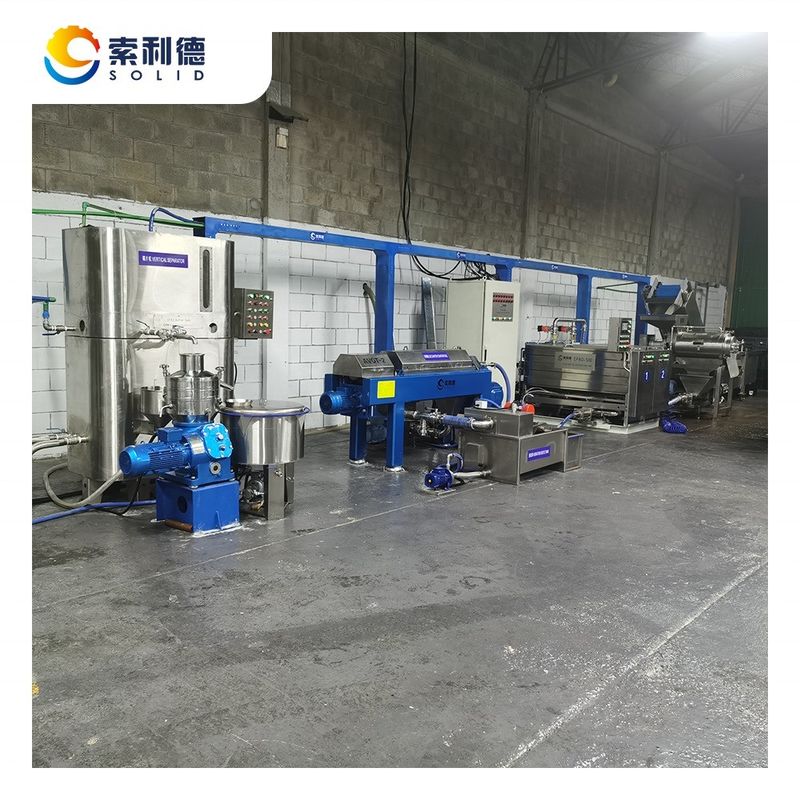

CPAO-500 AVOCADO OIL COLD EXTRACTION LINE
CPAO series CENTRIFUGE EXTRACTION LINE is designed specially for avocado oil extraction from the ready paste by 2-phase or 3-phase separation.Together with our polishing separator,customer can produce the extra virgin avocado oil. Generally,the whole system consists of the following 6 steps 1.- avocado fruits sorting system 2.- avocado fruits washing and seed/skin removal system 3.- avocado paste malaxing system 4.- avocado oil extraction system 5.- avocado oil purification system 6.- avocado oil storage and bottling system
CPAO-500 | CPAO-1000 | CPAO-2000 | CPAO-3000 | CPAO-5000 | CPAO-8000 |
500KG/H | 1000KG/H | 2000KG/H | 3000KG/H | 5000KG/H | 8000KG/H |
Process Drawing
Process Description

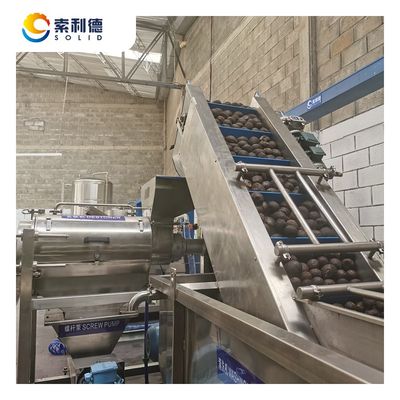

Washing Process
Water jet washing and water showering system can fulfill 2 times washing to remove the dust from the avocado fruit. The belt conveyor also work as a water drain system to collect the water.
Seed Removing Process
After washing,the avocado fruits will be processed by destoner where the seeds & skin will be separated from the pulp. The destoner is equipped with water adding function and screw pump.

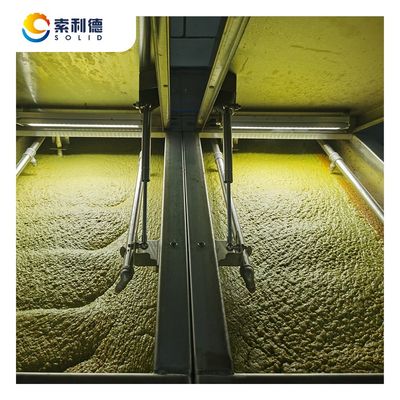

Pulp Malaxing Process
After destoner,the avocado pulp will be pumped into the malaxer for further process. The oil drops will be released and merge into large drops which can be separated easily by centrifuge.

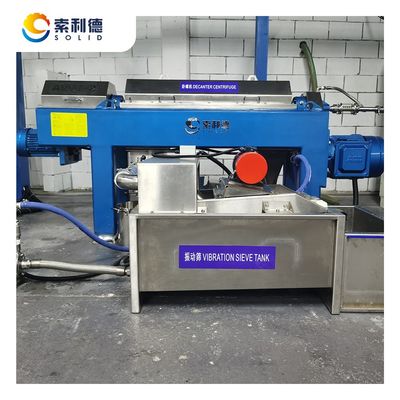

Centrifuge Extraction Process
After malaxing,the decanter centrifuge will be followd to separate the oil from pomace and water.During this process, 2 phase and 3 phase decanter avaible.

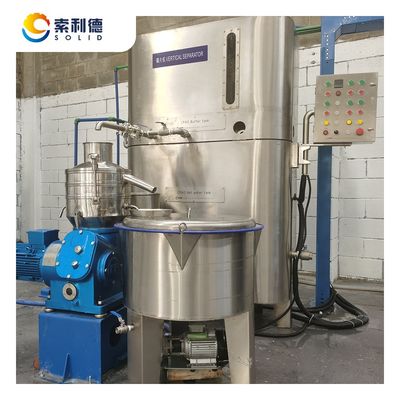

Oil Purification Process
After decanter,the oil still contains little moisure and impurities. Here a vertical disc separator is used to saparate the impurities for final purified avocado oil.
Control system
The control cabinet is used to control all the equipment of the whole line.The main point is speed,temperature,time, electric current,alarm and ON/OFF etc.
Configuration List
S/N. | PROCESS EQUIPMENT | SPECIFICATION | POWER | QTY |
1 | WASHING MACHINE | FOOD GRADE SUS304 | / | 1 |
2 | AVOCADO DESTONER | FOOD GRADE SUS304 | / | 1 |
3 | PULP MALAXER TANK | FOOD GRADE SUS304 | / | 2 |
4 | DECANTER CENTRIFUGE | FOOD GRADE SUS304 | / | 1 |
5 | DISC SEPARATOR | FOOD GRADE SUS304 | / | 1 |
6 | CONTROL CABINET | CONTROL THE WHOLE LINE; CARBON STEEL | / | 1 |
