CPAO-3000 3000KG/H Centrifuge Extraction Method Virgin Avocado Oil Extraction Machine
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | HENAN SOLID |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $320,000.00/sets 1-1 sets |
| Packaging Details: | All core equipment and spare parts are packed by exported standard wooden cases.<br>CPAO-3000 line can fit into 2*40'HQ container |
| Supply Ability: | 30 Set/Sets per Year |
|
Detail Information |
|||
| Applicable Industries: | Manufacturing Plant, Food & Beverage Factory, Farms | Max Capacity: | 4000kg/h |
|---|---|---|---|
| Showroom Location: | Mexico, Kenya | Condition: | New |
| Use: | Avocado Oil | Type: | Centrifuge Extraction Machine |
| Automatic Grade: | Automatic | Production Capacity: | 3000KG/H |
| Voltage: | 220V/380V/415V/440V | Dimension(L*W*H): | 30*6*6M |
| Weight: | 14000 KG, 14000KGS | Warranty: | 2 Years |
| Key Selling Points: | Long Service Life | Marketing Type: | New Product 2020 |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 2 Years | Core Components: | Motor, PLC, Gear, Bearing, Gearbox |
| Oil Type: | Avocado Oil | Product Name: | Avocado Oil Cold Pressed Line |
| Extraction Method: | Centrifuge Extraction | Core Equipment: | Decanter And Separator |
| Equipment Material: | SUS304 | Model: | CPAO-3000 |
| Capacity: | 3000KG/H | Installation Power: | 110kw |
| Oil Yield: | 10% | Cover Space: | 30*6*6M |
| Port: | QINGDAO,SHANGHAI | ||
Product Description
Product Description
Cold Pressed Avocado Oil Line CPAO-3000

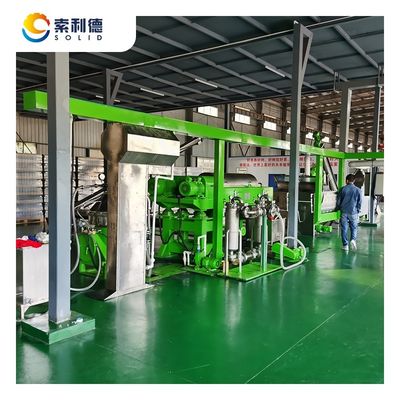

CPAO series CENTRIFUGE EXTRACTION LINE is designed specially for avocado oil extraction from the ready paste by 2-phase or 3-phase separation. Together with our polishing separator,customer can produce the extra virgin avocado oil. Generally,the whole system consists of the following 6 steps 1.- avocado fruits sorting system 2.- avocado fruits washing and seed/skin removal system 3.- avocado paste malaxing system 4.- avocado oil extraction system 5.- avocado oil purification system 6.- avocado oil storage and bottling system
Process Drawing
Configuration List
S/N. | PROCESS EQUIPMENT | SPECIFICATION | POWER | QTY |

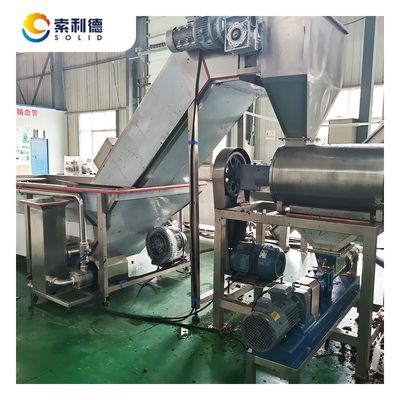

1 | WASHING MACHINE | FOOD GRADE SUS304 | / | 1 |

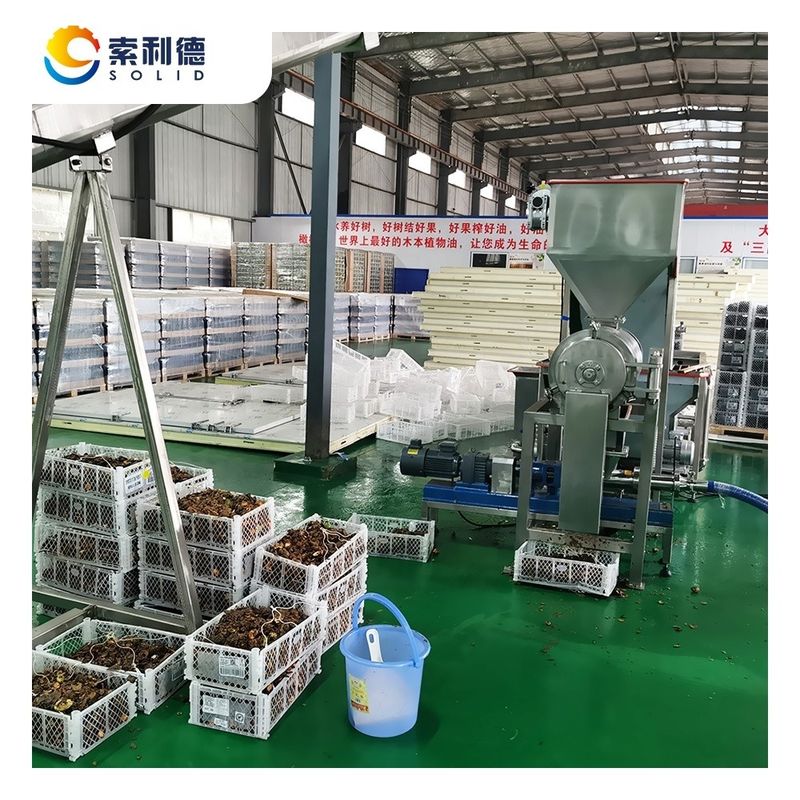

2 | SEED REMOVING MACHINE | FOOD GRADE SUS304 | / | 1 |

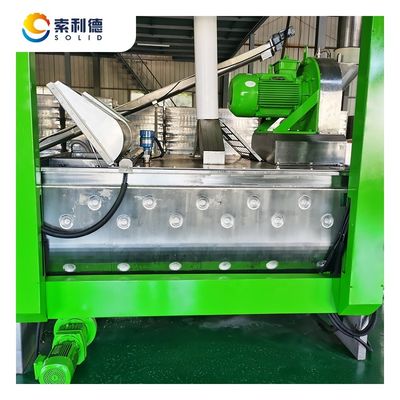

3 | PULP MALAXER TANK | FOOD GRADE SUS304 | / | 4 |

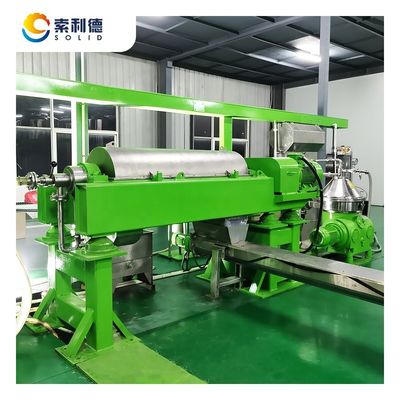

4 | DECANTER CENTRIFUGE | FOOD GRADE SUS304 | / | 1 |
5 | DISC SEPARATOR | FOOD GRADE SUS304 | / | 1 |
6 | CONTROL CABINET | CONTROL THE WHOLE LINE; CARBON STEEL | / | 1 |
