1000kg/h Virgin Avocado Oil Production Line with Centrifuge Extraction and Cold Press
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | HENAN SOLID |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $240,000.00/sets 1-1 sets |
| Packaging Details: | All core equipment and spare parts are packed by exported standard wooden cases.<br>CPAO-1000 line can fit into 2*40'HQ container |
| Supply Ability: | 30 Set/Sets per Year |
|
Detail Information |
|||
| Applicable Industries: | Manufacturing Plant, Food & Beverage Factory, Farms | Max Capacity: | 1000 Kg/h |
|---|---|---|---|
| Showroom Location: | Mexico, Kenya | Condition: | New |
| Use: | Avocado Oil | Type: | Centrifuge Extraction Machine |
| Automatic Grade: | Automatic | Production Capacity: | 1000KG/H |
| Voltage: | 220V/380V/415V/440V | Dimension(L*W*H): | 24*3*6M |
| Weight: | 7500 KG, 7500KGS | Warranty: | 1 Year |
| Key Selling Points: | Long Service Life | Marketing Type: | New Product 2020 |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 2 Years | Core Components: | Motor, PLC, Bearing |
| Oil Type: | OLIVE OIL, AVOCADO OIL | Product Name: | Avocado Oil Cold Pressed Line |
| Extraction Method: | Centrifuge Extraction | Core Equipment: | Decanter And Separator |
| Equipment Material: | SUS304 | Model: | CPAO-1000 |
| Capacity: | 1000KG/H | Installation Power: | 60kw |
| Oil Yield: | 10% | Cover Space: | 24*3*6M |
| Port: | QINGDAO,SHANGHAI | ||
Product Description
Product Description

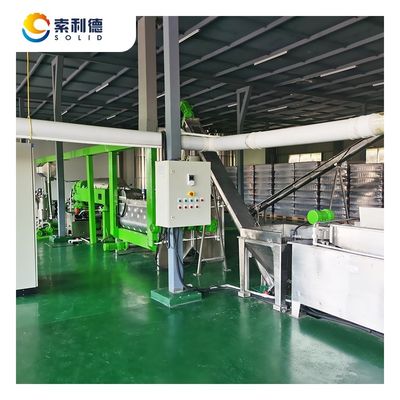

Cold Pressed Avocado Oil Line CPAO-1000
CPAO series CENTRIFUGE EXTRACTION LINE is designed specially for avocado oil extraction from the ready paste by 2-phase or 3-phase separation. Together with our polishing separator,customer can produce the extra virgin avocado oil. Generally,the whole system consists of the following 6 steps 1.- avocado fruits sorting system 2.- avocado fruits washing and seed/skin removal system 3.- avocado paste malaxing system 4.- avocado oil extraction system 5.- avocado oil purification system 6.- avocado oil storage and bottling system
Process Drawing
Configuration List
S/N. | PROCESS EQUIPMENT | SPECIFICATION | POWER | QTY |

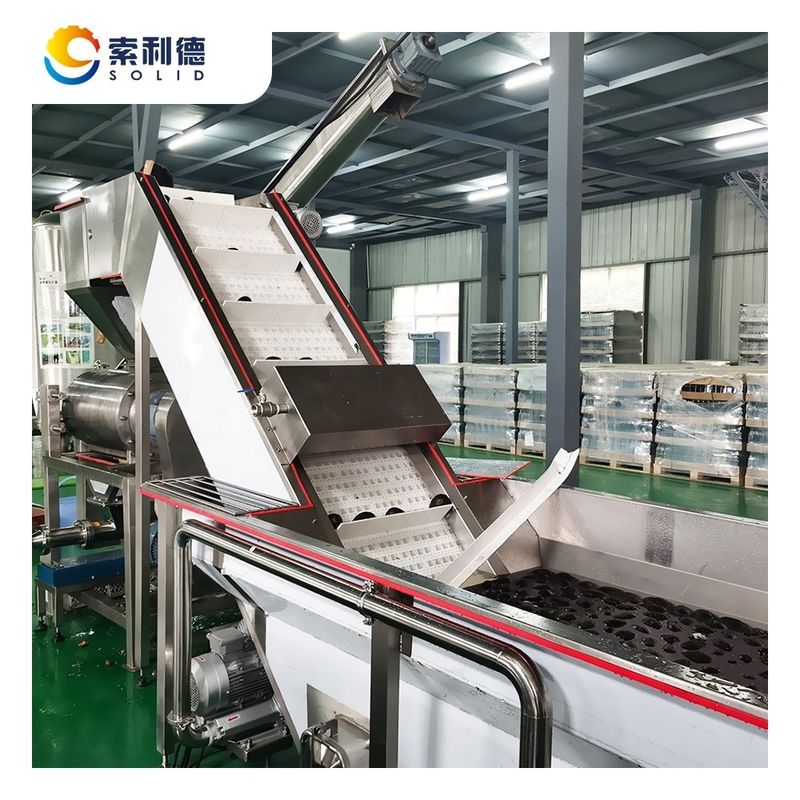

1 | WASHING MACHINE | FOOD GRADE SUS304 | / | 1 |
2 | SEED REMOVING MACHINE | FOOD GRADE SUS304 | / | 1 |
3 | PULP MALAXER TANK | FOOD GRADE SUS304 | / | 2 |

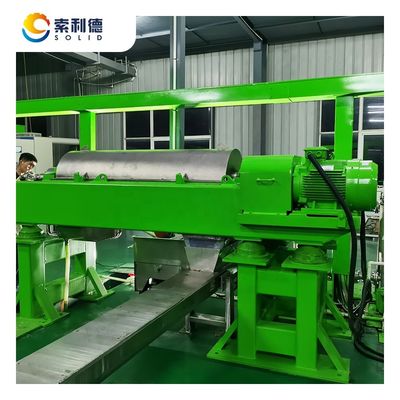

4 | DECANTER CENTRIFUGE | FOOD GRADE SUS304 | / | 1 |
5 | DISC SEPARATOR | FOOD GRADE SUS304 | / | 1 |
6 | CONTROL CABINET | CONTROL THE WHOLE LINE; CARBON STEEL | / | 1 |
Recommend Products
Avocado fruit destoner
The destoner is used in the extra virgin avocado oil extraction system.By this machine, the seed and skin can be removed before oil extraction.
Avocado oil tricanter
Tricanter is used to extract avocado oil by 3 phase separation system where avocado oil will be separated from the avocado paste and water.
Avocado oil separator
This separator is designed for extra virgin avocado oil purification following the tricanter. Special structure design make its perfect with virgin quality oil.
