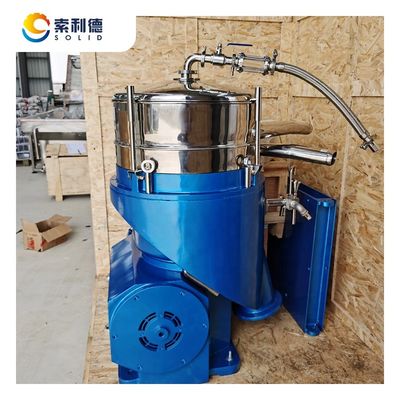

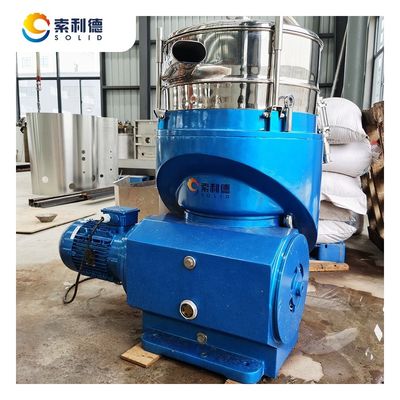

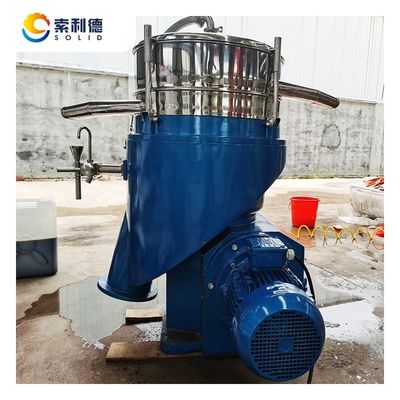

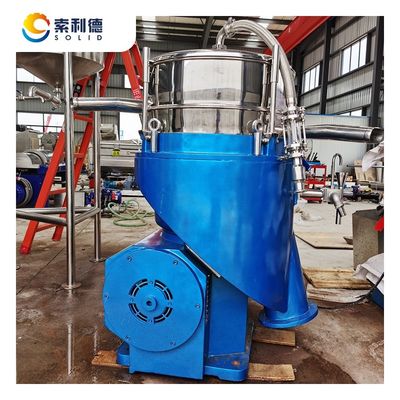

AVOS-2000 2000L/H Extra Virgin Olive Oil Vertical Disc Stack Separator for Your Benefit
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | HENAN SOLID |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $28,000.00/sets >=1 sets |
| Packaging Details: | All core equipment and spare parts will be film wrapped and packed by exported standard wooden cases. |
| Supply Ability: | 200 Set/Sets per Year |
|
Detail Information |
|||
| Applicable Industries: | Food & Beverage Shops | Max Capacity: | 2000L/H |
|---|---|---|---|
| Showroom Location: | Mexico, Kenya | Condition: | New |
| Use: | OLIVE OIL | Type: | Cold & Hot Pressing Machine |
| Automatic Grade: | Automatic | Production Capacity: | 99% |
| Voltage: | 220V/380/415V/440V | Dimension(L*W*H): | 1090X1100X1305MM |
| Weight: | 690 KG | Warranty: | 1 Year |
| Key Selling Points: | Automatic | Marketing Type: | New Product 2020 |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 1 Year | Core Components: | Bearing, Engine |
| Oil Type: | OLIVE OIL | Product Name: | Olive Oil Disc Separator |
| Brand: | HENAN SOLID | Model: | AVOS-2000 |
| Capacity: | 2000kg/h | Rotation Speed: | 6250 |
| Power: | 5.5kw (ABB/SIEMENS) | Power Supply: | 220V/380V/415V/440V |
| Start Type: | Direct Startup | Discharge Type: | Manual |
| Dimensions&Weight: | 1090X1100X1305MM /690KGS | Port: | QINGDAO,SHANGHAI |
Product Description
AVOS Series Vertical Separator
(Special Design for Olive Oil Production)
AVOS series vertical separator is designed specially for olive oil and avocado oil (which comes from decanter centrifuge) purification. This separator can be also used to recover the oil from the vegetable water generated in the olive oil mill.
AVOS-1000 Vertical Separator
AVOS-1000 Vertical separator is designed for olive oil and avocado oil purification,mainly used for 500kg/h and 1000kg/h olive oil extraction line
AVOS-2000 Vertical Separator
AVOS-2000 Vertical separator is designed for olive oil and avocado oil purification,mainly used for capacity over 2000kg/h olive oil extraction line
Specification
MODEL | AVOS-1000 | AVOS-2000 | AVOS-4000 | |||
Brand | HENAN SOLID | HENAN SOLID | HENAN SOLID | |||
Capacity | 1000L/H | 2000L/H | 4000L/H | |||
Drum ID | 240MM | 315MM | 385MM | |||
Design Speed | 7200 | 6250 | 7800 | |||
Material | 304/316/2205/2507 (DIN 1.4301/1.4401/1.4462/1.4410) | SUS304 | ||||
Power | 4.0KW | 5.5KW | 11KW | |||
Start Mode | Direct Startup | Direct Startup | Frequency Startup | |||
Discharge Model | Manual | Manual | Self-cleaning | |||
Dimension L*W*H | 900MMX700MMX1100MM | 1090MMX1100MMX1305MM | 1200MMX1100MMX1300MM | |||
Weight | 560KGS | 690KGS | 826KGS | |||
Packing & Delivery

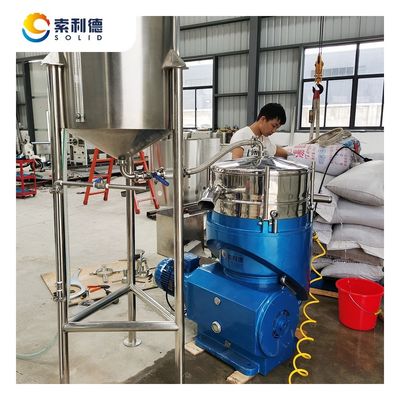

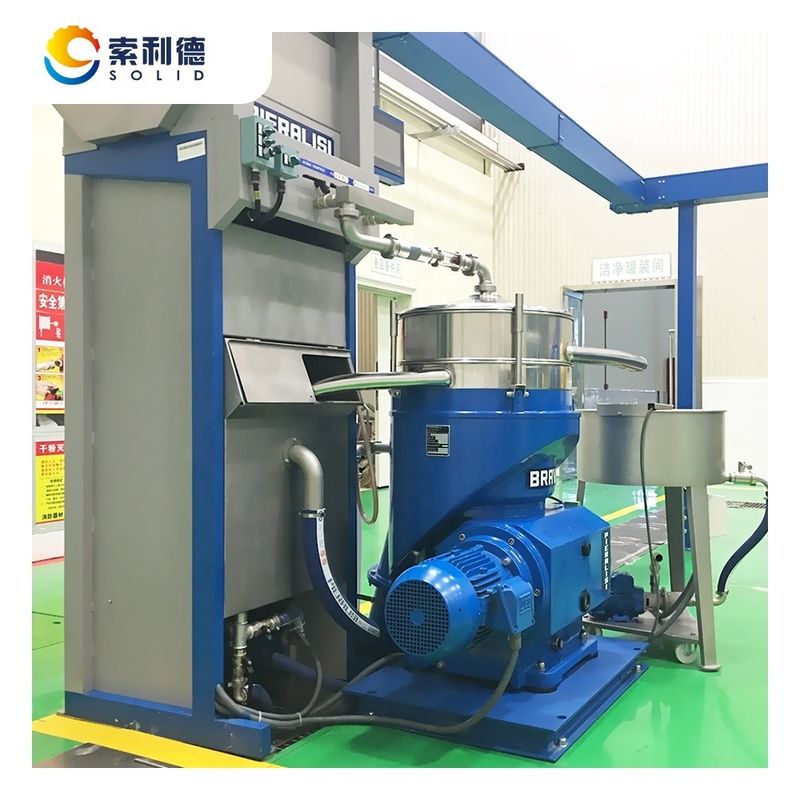

Customer Photos
