Yield 22kw Installation Power EVOO-250 Olive Oil Extraction Line for 3500 KG/H Output
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | HENAN SOLID |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $65,000.00/sets >=1 sets |
| Packaging Details: | All core equipment and spare parts are packed by exported standard wooden cases. <br>CPAO-500 line can fit into 1*20'GP container |
| Supply Ability: | 30 Set/Sets per Year |
|
Detail Information |
|||
| Applicable Industries: | Manufacturing Plant, Food & Beverage Factory, Farms, Olive Orchards | Max Capacity: | 300kg/h |
|---|---|---|---|
| Showroom Location: | Italy, Saudi Arabia, Mexico, Spain, Chile, South Africa, Australia, Morocco | Condition: | New |
| Use: | OLIVE OIL | Type: | Centrifuge Extraction Machine |
| Automatic Grade: | Automatic | Production Capacity: | 500KG/H |
| Voltage: | 220V/415V/440V | Dimension(L*W*H): | 9*1.5*2.5M |
| Weight: | 3500 KG, 3500KGS | Warranty: | 1 Year |
| Key Selling Points: | Long Service Life | Marketing Type: | New Product 2020 |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 2 Years | Core Components: | Motor, PLC, Bearing |
| Oil Type: | OLIVE OIL | Product Name: | Olive Oil Extraction Line |
| Extraction Method: | Centrifuge Extraction | Core Equipment: | Decanter And Separator |
| Equipment Material: | Stainless Steel 304 | Model: | EVOO-250 |
| Capacity: | 200-400KG/H | Installation Power: | 22kw |
| Oil Yield: | 13.5% | Cover Space: | 9*1.5*2.6M |
| Port: | QINGDAO,SHANGHAI | ||
Product Description
Product Description
Olive Oil Cold Extraction Line EVOO-250
The equipment is used for virgin olive oil production and all components are made in china.
Process Drawing
Process Description
Storage&Transfer Process
The collected fruits shall be put into small baskets first and delivered to factory,The baskets will stack in the ventilate storage warehouse to avoid oxidation&fermentation phenomenon because of the overheat and bruise.

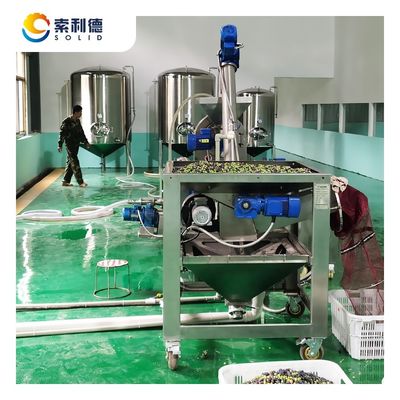

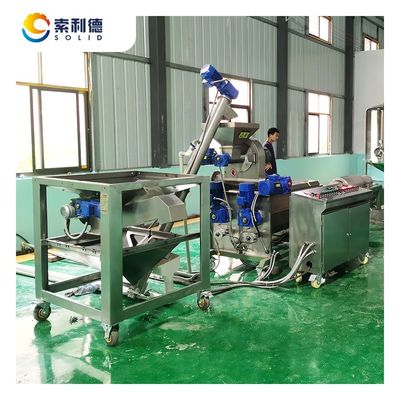

Fruit Washing Process
The olive fruits are conveyed into the washing machine,then are rinsed and washed to remove the dust under the function of strong water flow.The water is collected for recovery by circulation tank under the vibration sieve.
Crushing&Malaxing Process
After crushing,the olive fruit pulp will be pumped into the malaxer for further process. The oil drops will be released and merge into large drops which can be separated easily by centrifuge.
Pulp Malaxing Process
After crushing,the avocado pulp will be pumped into the malaxer for further process. The oil drops will be released and merge into large drops which can be separated easily by centrifuge.

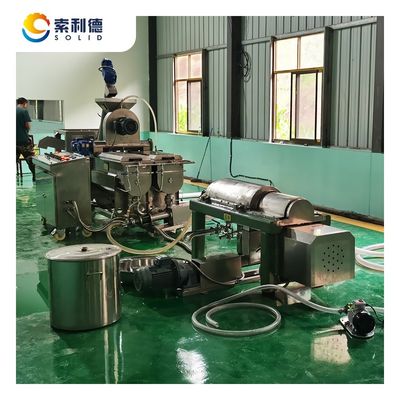

Centrifuge Extraction Process
After malaxing,the decanter centrifuge will be followd to separate the oil from pomace and water.During this process, 2 and 3 phase decanter centrifuge are available to meet production condition.
Oil Purification Process
After decanter,the oil still contains little moisure and impurities. Here a vertical disc separator is used to saparate the
impurities for final purified virgin olive oil.
impurities for final purified virgin olive oil.
Configuration List
S/N. | PROCESS EQUIPMENT | SPECIFICATION | POWER | QTY |
1 | WASHING MACHINE | FOOD GRADE SUS304 | / | 1 |
2 | CRUSHING MACHINE | FOOD GRADE SUS304 | / | 1 |
3 | PULP MALAXER TANK | FOOD GRADE SUS304 | / | 2 |
4 | DECANTER CENTRIFUGE | FOOD GRADE SUS304 | / | 1 |
5 | DISC SEPARATOR | FOOD GRADE SUS304 | / | 1 |
6 | CONTROL CABINET | CONTROL THE WHOLE LINE; CARBON STEEL | / | 1 |
Different Models for Choice
(The following capacity is based on the olive fruits input)
EVOO-500 | EVOO-1500 | EVOO-3500 | EVOO-5000 | EVOO-8000 |
500KG/H | 1000-2000KG/H | 3000-4000KG/H | 5000-6000KG/H | 8000-10.000KG/H |
