130kw Centrifuge Extraction 5T/H Cold Pressed Olive Oil Machine with Vertical Separator

130kw Centrifuge Extraction 5T/H Cold Pressed Olive Oil Machine with Vertical Separator

Product Details:

Place of Origin: Henan, China
Brand Name: HENAN SOLID

Payment & Shipping Terms:

Minimum Order Quantity: 1 set
Price: $240,000.00 - $260,000.00/sets
Packaging Details: All core equipment and spare parts are packed by exported standard wooden cases.<br>EVOO-5000 line can fit into 3*40'ft container
Supply Ability: 30 Set/Sets per Year
Get Best Price Chat Now

Detail Information

Applicable Industries: Manufacturing Plant, Food & Beverage Factory, Farms, Olive Orchards Max Capacity: 5000kg/h
Showroom Location: Italy, Peru, Mexico, Russia, Morocco Condition: New
Use: OLIVE OIL Type: Centrifuge Extraction Machine
Automatic Grade: Automatic Production Capacity: 5000KG/H
Voltage: 220V/380V Dimension(L*W*H): 30*6*6M
Weight: 14000 KG, 14000KGS Warranty: 2 Years
Key Selling Points: Long Service Life Marketing Type: New Product 2021
Machinery Test Report: Provided Video Outgoing-inspection: Provided
Warranty Of Core Components: 2 Years Core Components: Motor, PLC, Bearing, Engine
Oil Type: OLIVE OIL Product Name: Olive Oil Processing Plant
Extraction Method: Centrifuge Extraction Core Equipment: Decanter And Separator
Equipment Material: Stainless Steel 304 Model: EVOO-5000
Capacity: 5000-6000KG/H Installation Power: 130kw
Oil Yield: 13.5% Cover Space: 30*6*6M
Port: QINGDAO,SHANGHAI

Product Description

Product Description
EVOO series CENTRIFUGE EXTRACTION LINE is designed specially for olive oil extraction from the ready paste by 2-phase or 3-phase separation. Together with our polishing separator,customer can produce the extra virgin olive oil. Generally,the whole system consists of the following 6 steps 1.- olive fruits transforming and washing system 2.- olive fruits crushing system 3.- olive paste malaxing system 4.- olive oil extraction system 5.- olive oil purification system 6.- olive oil storage and bottling system
Process Drawing
130kw Centrifuge Extraction 5T/H Cold Pressed Olive Oil Machine with Vertical Separator 0
Process Description
130kw Centrifuge Extraction 5T/H Cold Pressed Olive Oil Machine with Vertical Separator 1

Storage&Transfer Process

The collected fruits shall be put into small baskets first and delivered to factory,The baskets will stack in the ventilate storage warehouse to avoid oxidation&fermentation phenomenon because of the overheat and bruise.
130kw Centrifuge Extraction 5T/H Cold Pressed Olive Oil Machine with Vertical Separator 2

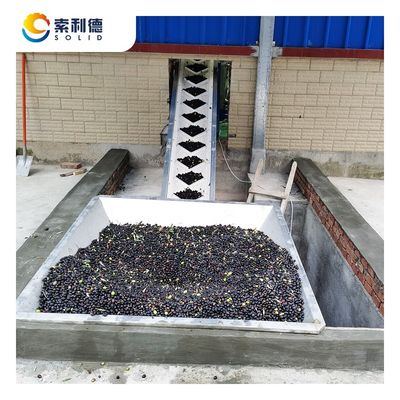

Fruit Washing Process

The olive fruits are conveyed into the washing machine,then are rinsed and washed to remove the dust under the function of strong water flow.The water is collected for recovery by circulation tank under the vibration sieve.
130kw Centrifuge Extraction 5T/H Cold Pressed Olive Oil Machine with Vertical Separator 3

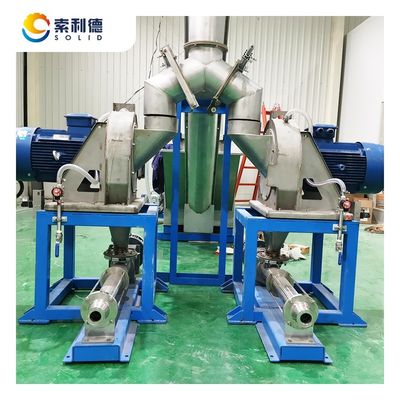

Crushing&Malaxing Process

After crushing,the olive fruit pulp will be pumped into the malaxer for further process. The oil drops will be released and merge into large drops which can be separated easily by centrifuge.
130kw Centrifuge Extraction 5T/H Cold Pressed Olive Oil Machine with Vertical Separator 4

Pulp Malaxing Process

After crushing,the avocado pulp will be pumped into the malaxer for further process. The oil drops will be released and merge into large drops which can be separated easily by centrifuge.
130kw Centrifuge Extraction 5T/H Cold Pressed Olive Oil Machine with Vertical Separator 5

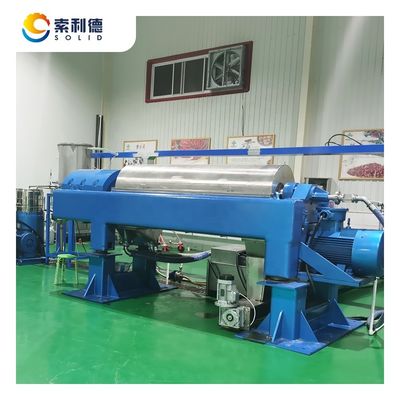

Centrifuge Extraction Process

After malaxing,the decanter centrifuge will be followd to separate the oil from pomace and water.During this process, 2 and 3 phase decanter centrifuge are available to meet production condition.
130kw Centrifuge Extraction 5T/H Cold Pressed Olive Oil Machine with Vertical Separator 6

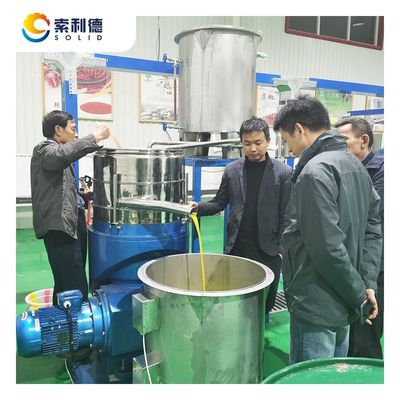

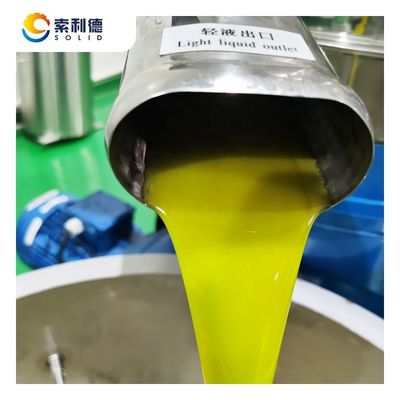

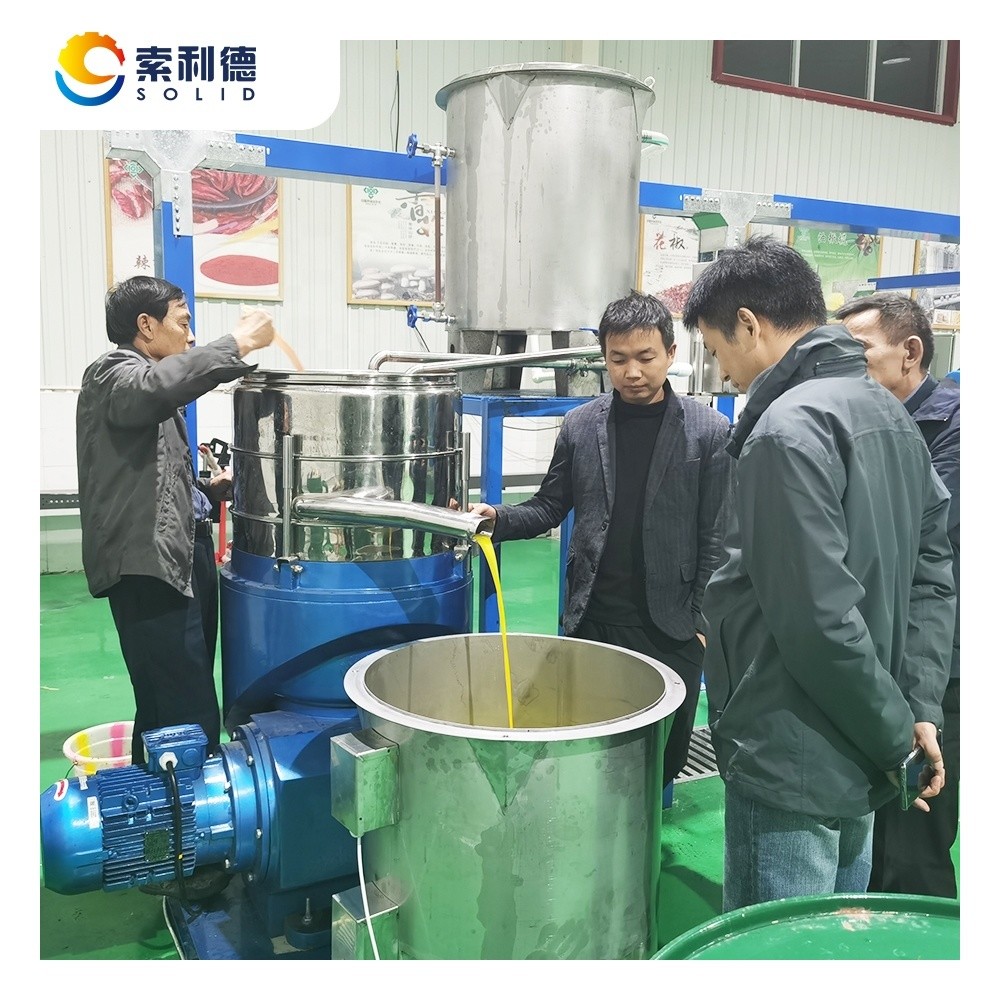

Oil Purification Process

After decanter,the oil still contains little moisure and impurities. Here a vertical disc separator is used to saparate the
impurities for final purified virgin olive oil.
Configuration List
S/N.
PROCESS EQUIPMENT
SPECIFICATION
POWER
QTY
1
WASHING MACHINE
FOOD GRADE SUS304
/
1
2
CRUSHING MACHINE
FOOD GRADE SUS304
/
1
3
PULP MALAXER TANK
FOOD GRADE SUS304
/
8
4
DECANTER CENTRIFUGE
FOOD GRADE SUS304
/
1
5
DISC SEPARATOR
FOOD GRADE SUS304
/
2
6
CONTROL CABINET
CONTROL THE WHOLE LINE; CARBON STEEL
/
1
130kw Centrifuge Extraction 5T/H Cold Pressed Olive Oil Machine with Vertical Separator 7
130kw Centrifuge Extraction 5T/H Cold Pressed Olive Oil Machine with Vertical Separator 8
