Centrifuge Extraction Machine Essential Equipment for Purifying Coconut and Olive Oil
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | HENAN SOLID |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $350,000.00/sets >=1 sets |
| Packaging Details: | All core equipment and spare parts are packed by exported standard wooden cases.<br>EVOO-5000 line can fit into 3*40'ft container |
| Supply Ability: | 30 Set/Sets per Year |
|
Detail Information |
|||
| Applicable Industries: | Manufacturing Plant, Food & Beverage Factory, Farms, Olive Orchards | Max Capacity: | 8T/h |
|---|---|---|---|
| Showroom Location: | Mexico, Morocco | Condition: | New |
| Use: | OLIVE OIL | Type: | Centrifuge Extraction Machine |
| Automatic Grade: | Automatic | Production Capacity: | 8T/H |
| Voltage: | 220V/380V | Dimension(L*W*H): | 36X6X80M |
| Weight: | 18000 KG, 18000KGS | Warranty: | 2 Years |
| Key Selling Points: | Long Service Life | Marketing Type: | New Product 2021 |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 2 Years | Core Components: | Motor, PLC, Bearing, Engine |
| Oil Type: | OLIVE OIL | Product Name: | Olive Oil Processing Plant |
| Extraction Method: | Centrifuge Extraction | Core Equipment: | Decanter And Separator |
| Equipment Material: | Stainless Steel 304 | Model: | EVOO-8000 |
| Capacity: | 8T/H | Installation Power: | 170kw |
| Oil Yield: | 13.5% | Cover Space: | 36X6X80M |
| Port: | QINGDAO,SHANGHAI | ||
Product Description
Product Description
EVOO series CENTRIFUGE EXTRACTION LINE is designed specially for olive oil extraction from the ready paste by 2-phase or 3-phase separation. Together with our polishing separator,customer can produce the extra virgin olive oil. Generally,the whole system consists of the following 6 steps 1.- olive fruits transforming and washing system 2.- olive fruits crushing system 3.- olive paste malaxing system 4.- olive oil extraction system 5.- olive oil purification system 6.- olive oil storage and bottling system
Process Drawing
Process Description
Storage&Transfer Process
The collected fruits shall be put into small baskets first and delivered to factory,The baskets will stack in the ventilate storage warehouse to avoid oxidation&fermentation phenomenon because of the overheat and bruise.
Fruit Washing Process
The olive fruits are conveyed into the washing machine,then are rinsed and washed to remove the dust under the function of strong water flow.The water is collected for recovery by circulation tank under the vibration sieve.
Crushing&Malaxing Process
After crushing,the olive fruit pulp will be pumped into the malaxer for further process. The oil drops will be released and merge into large drops which can be separated easily by centrifuge.
Pulp Malaxing Process
After crushing,the avocado pulp will be pumped into the malaxer for further process. The oil drops will be released and merge into large drops which can be separated easily by centrifuge.
Centrifuge Extraction Process

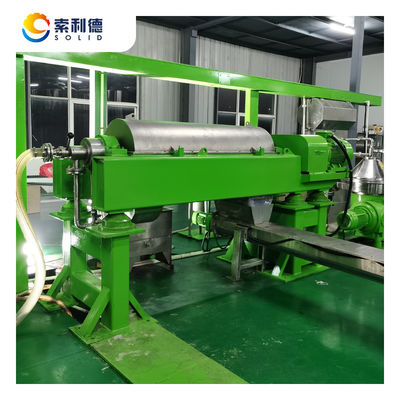

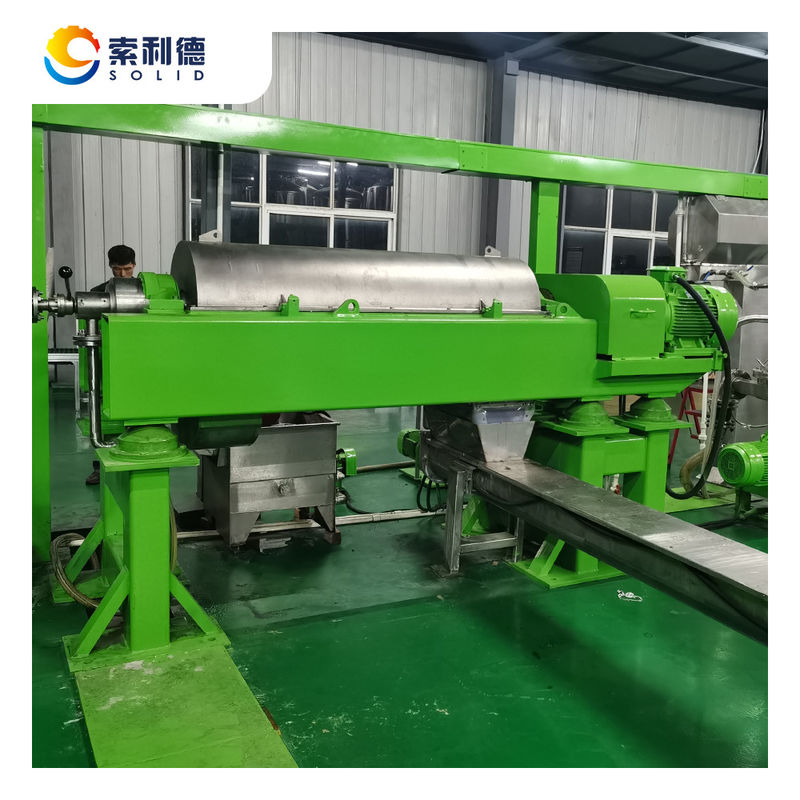

After malaxing,the decanter centrifuge will be followd to separate the oil from pomace and water.During this process, 2 and 3 phase decanter centrifuge are available to meet production condition.
Oil Purification Process

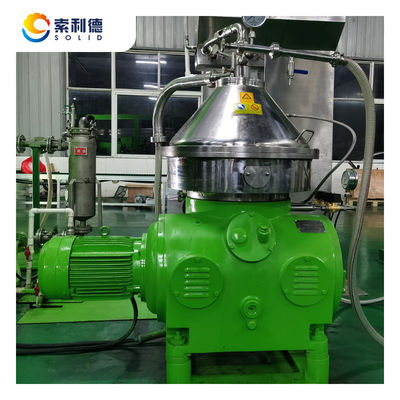

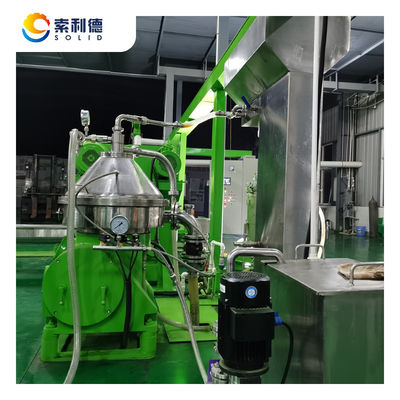

After decanter,the oil still contains little moisure and impurities. Here a vertical disc separator is used to saparate the
impurities for final purified virgin olive oil.
impurities for final purified virgin olive oil.
Configuration List
S/N. | PROCESS EQUIPMENT | SPECIFICATION | POWER | QTY |
1 | WASHING MACHINE | FOOD GRADE SUS304 | / | 1 |
2 | CRUSHING MACHINE | FOOD GRADE SUS304 | / | 1 |
3 | PULP MALAXER TANK | FOOD GRADE SUS304 | / | 5 |
4 | DECANTER CENTRIFUGE | FOOD GRADE SUS304 | / | 1 |
5 | DISC SEPARATOR | FOOD GRADE SUS304 | / | 2 |
6 | CONTROL CABINET | CONTROL THE WHOLE LINE; CARBON STEEL | / | 1 |
