EVOO-1500 1500KG/H Extra Virgin Olive Oil Cold Press Machine by Centrifuge Extraction
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | HENAN SOLID |
| Certification: | ISO CE |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $120,000.00/sets >=1 sets |
| Packaging Details: | All core equipment and spare parts are packed by exported standard wooden cases.<br>EVOO-1500 line can fit into 2*40'GP container |
| Supply Ability: | 30 Set/Sets per Year |
|
Detail Information |
|||
| Applicable Industries: | Manufacturing Plant, Food & Beverage Factory, Farms, Olive Orchards | Max Capacity: | 2000kg/h |
|---|---|---|---|
| Showroom Location: | Peru, Morocco | Condition: | New |
| Use: | OLIVE OIL | Type: | Centrifuge Extraction Machine |
| Automatic Grade: | Automatic | Production Capacity: | 1500KG/H |
| Voltage: | 220V/.380V | Dimension(L*W*H): | 24*3*6M |
| Weight: | 7500KGS, 3500KGS | Warranty: | 2 Years |
| Key Selling Points: | Long Service Life | Marketing Type: | New Product 2021 |
| Machinery Test Report: | Provided | Video Outgoing-inspection: | Provided |
| Warranty Of Core Components: | 2 Years | Core Components: | Motor, PLC, Bearing, Engine |
| Oil Type: | OLIVE OIL | Product Name: | Olive Oil Cold Press Machine |
| Extraction Method: | Centrifuge Extraction | Core Equipment: | Decanter And Separator |
| Equipment Material: | Stainless Steel 304 | Model: | EVOO-1500 |
| Capacity: | 1000-2000KGS/H | Installation Power: | 60kw |
| Oil Yield: | 13.5% | Cover Space: | 24*3*6M |
| After Warranty Service: | Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service | Local Service Location: | Peru, Mexico, Morocco |
| After-sales Service Provided: | Free Spare Parts, Field Installation, Commissioning And Training, Field Maintenance And Repair Service, Video Technical Support, Online Support | Port: | QINGDAO,SHANGHAI |
Product Description
Product Description

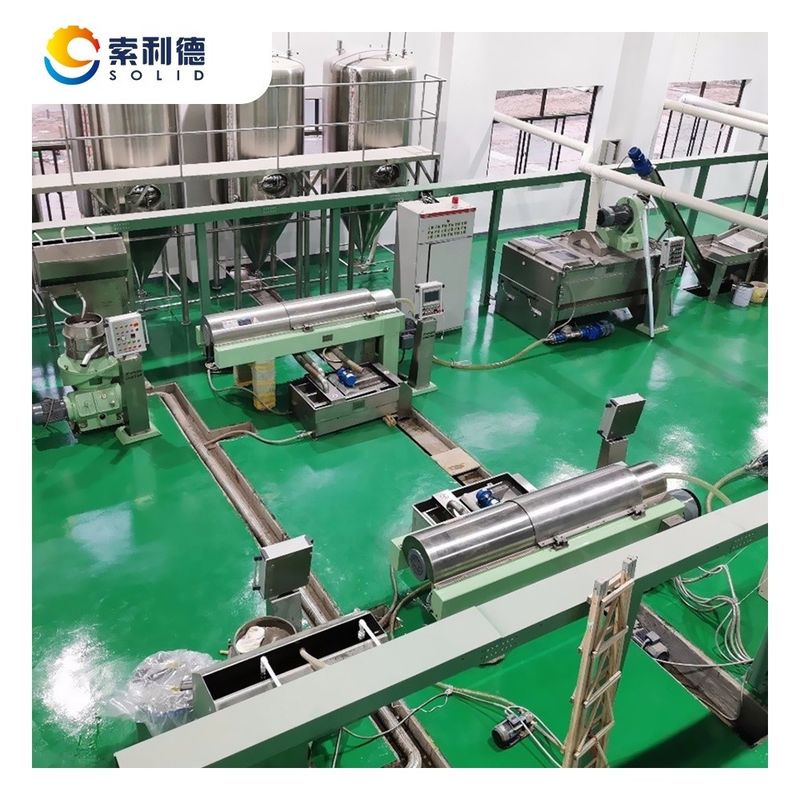

Olive Oil Cold Extraction Line EVOO-1500
The equipment is used for virgin olive oil production and all components are made in china.
Process Drawing
Process Description
Storage&Transfer Process
The collected fruits shall be put into small baskets first and delivered to factory,The baskets will stack in the ventilate storage warehouse to avoid oxidation&fermentation phenomenon because of the overheat and bruise.
Fruit Washing Process

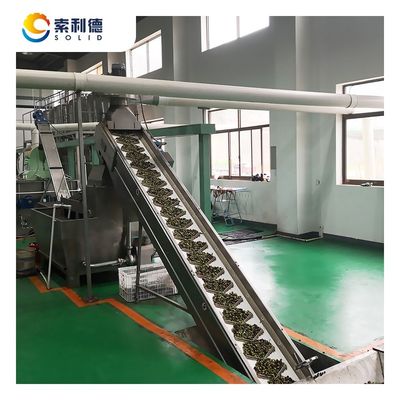

The olive fruits are conveyed into the washing machine,then are rinsed and washed to remove the dust under the function of strong water flow.The water is collected for recovery by circulation tank under the vibration sieve.
Crushing&Malaxing Process
After crushing,the olive fruit pulp will be pumped into the malaxer for further process. The oil drops will be released and merge into large drops which can be separated easily by centrifuge.
Pulp Malaxing Process
After crushing,the avocado pulp will be pumped into the malaxer for further process. The oil drops will be released and merge into large drops which can be separated easily by centrifuge.
Centrifuge Extraction Process

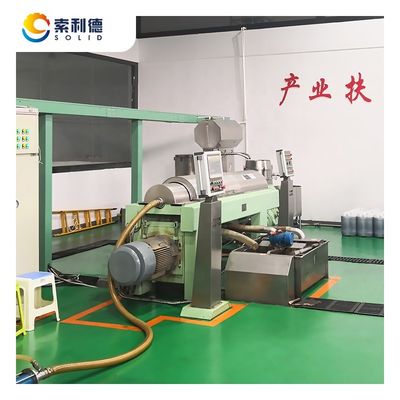

After malaxing,the decanter centrifuge will be followd to separate the oil from pomace and water.During this process, 2 and 3 phase decanter centrifuge are available to meet production condition.
Oil Purification Process

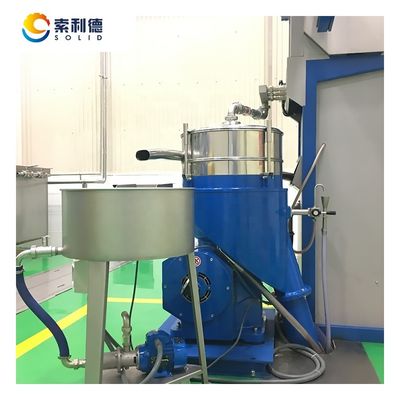

After decanter,the oil still contains little moisure and impurities. Here a vertical disc separator is used to saparate the
impurities for final purified virgin olive oil.
impurities for final purified virgin olive oil.
Configuration List
S/N. | PROCESS EQUIPMENT | SPECIFICATION | POWER | QTY |
1 | WASHING MACHINE | FOOD GRADE SUS304 | / | 1 |
2 | CRUSHING MACHINE | FOOD GRADE SUS304 | / | 1 |
3 | PULP MALAXER TANK | FOOD GRADE SUS304 | / | 2 |
4 | DECANTER CENTRIFUGE | FOOD GRADE SUS304 | / | 1 |
5 | DISC SEPARATOR | FOOD GRADE SUS304 | / | 1 |
6 | CONTROL CABINET | CONTROL THE WHOLE LINE; CARBON STEEL | / | 1 |
