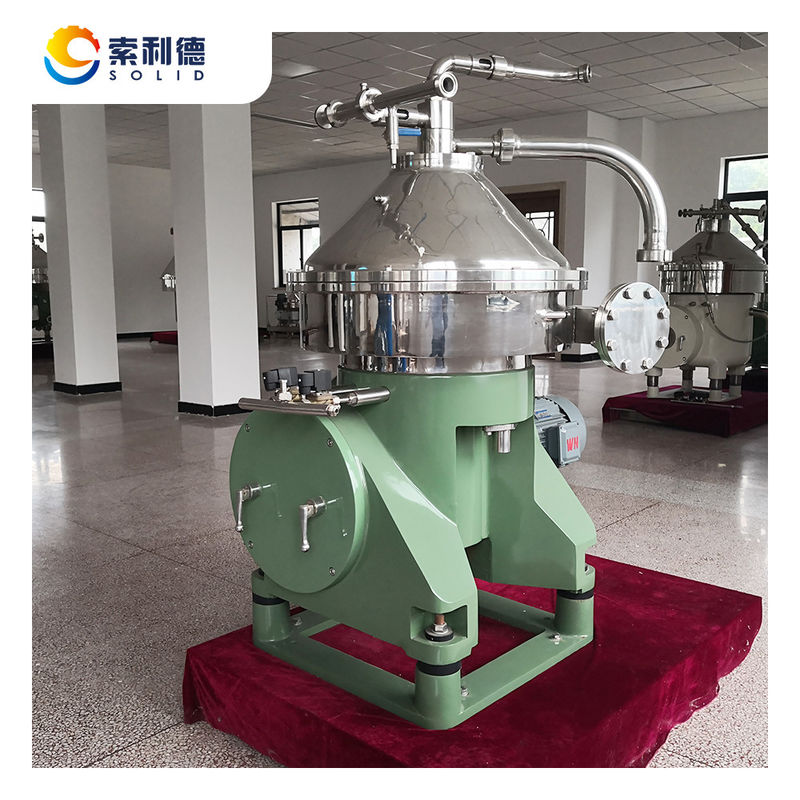

DHZ470 Advanced Vegetable Oil Refinery Disc Centrifuge Separator for Oil Degumming
Product Details:
| Place of Origin: | Henan, China |
| Brand Name: | HENAN SOLID |
Payment & Shipping Terms:
| Minimum Order Quantity: | 1 set |
|---|---|
| Price: | $35,000.00/sets >=1 sets |
| Packaging Details: | All core equipment and spare parts will be film wrapped and packed by exported standard wooden cases. |
| Supply Ability: | 200 Set/Sets per Year |
|
Detail Information |
|||
| Condition: | New | Applicable Industries: | Avocado Oil Production, Oliveoil Production |
|---|---|---|---|
| Showroom Location: | Peru, Mexico, Kenya | Video Outgoing-inspection: | Provided |
| Machinery Test Report: | Provided | Marketing Type: | New Product 2020 |
| Warranty Of Core Components: | 2 Years | Core Components: | Gearbox, Gear, Bearing, PLC, Differential |
| Material: | SUS304/SS316L/2205 | Weight: | 1800KGS |
| Size: | 1800X1600X1800MM | Power: | 15KW, 15kw (ABB/SIEMENS) |
| Warranty: | 2 Years | Productivity: | 100TPD |
| Weight (KG): | 1800 Kg | Product Name: | Vegetable Oil Disc Separator |
| Brand: | HENAN SOLID | Model: | DHZ470 |
| Capacity: | 100TPD | Rotation Speed: | 7070 |
| Power Supply: | 380V/50HZ/3-PH | Start Type: | Frequency Startup |
| Discharge Type: | Self Cleaning | Dimensions&Weight: | 1800X1600X1800MM/1800KGS |
| After Warranty Service: | Video Technical Support, Online Support, Spare Parts, Field Maintenance And Repair Service | Local Service Location: | Egypt, United States, Peru, Mexico |
| After-sales Service Provided: | Video Technical Support, Field Installation, Commissioning And Training, Field Maintenance And Repair Service, Free Spare Parts, Online Support | Port: | QINGDAO,SHANGHAI |
Product Description
DHZ Series Vertical Separator
(Special Design for Vegetables Oil Continuous Refining Plant
DHZ series vertical separator is specially designed and used for the vegetables oil continuous degumming&neutralization deacidification process in the continuous refining plant (sunflower oil/soybean oil/palm oil/cotton seeds oil/rice bran oil/ corn germ oil/olive oil/avocado oil/coconut oil etc.).
DHZ360 Vertical Separator
DHZ Series disc separator is mainly used in the vegetable oil continuous refining process.DHZ360 separator is designed for 50TPD vegetable oil refining plant (the real capacity due to the ffa in the crude oil)
DHZ470 Vertical Separator
DHZ Series disc separator is mainly used in the vegetable oil continuous refining process.DHZ470 separator is designed for 100TPD vegetable oil refining plant (the real capacity due to the ffa in the crude oil)
Specification
MODEL | DHZ240 | DHZ360 | DHZ470 | DHZ550 | ||
Brand | HENAN SOLID | HENAN SOLID | HENAN SOLID | HENAN SOLID | ||
Capacity | 10TPD | 50TPD | 100TPD | 200TPD | ||
Drum ID | 240MM | 360MM | 470MM | 550MM | ||
Design Speed | 8400 | 7070 | 6600 | 6000 | ||
Material | SUS304 | SUS304 | SUS304 | SUS304 | ||
Power | 4.0KW | 7.5KW | 15KW | 22KW | ||
Start Mode | Frequency Startup | Frequency Startup | Frequency Startup | Frequency Startup | ||
Discharge Model | Self-cleaning | Self-cleaning | Self-cleaning | Self-cleaning | ||
Dimension L*W*H | 1090X1100X1200MM | 1800X1600X1800MM | 1800X1900X1950MM | 1800X1900X1950MM | ||
Weight | 560KGS | 1500KGS | 1800KGS | 1900KGS | ||
Packing & Delivery
Customer Photos
Process Drawing
